A Cleaner Way to Erase Tattoos and Pigments: Introducing the QM-Q1
Unwanted tattoos, freckles, age spots, and birthmarks have always been frustrating. Traditional removal methods such as surgical excision, dermabrasion, chemical peels, and cryotherapy are often painful, leave scars, require long healing, and rarely give satisfying results. They damage normal skin and offer little precision.
That is why Q-switched Nd:YAG laser technology is now the gold standard. It uses ultra-short nanosecond pulses (less than eight nanoseconds) with extremely high peak energy. The light is absorbed only by the target pigment – tattoo ink or melanin – and creates a photomechanical blast that shatters the pigment into tiny fragments. These fragments are either ejected through the skin or removed naturally by the body’s lymphatic system. The surrounding healthy skin remains unharmed.
The Q-switched Nd:YAG laser has two main wavelengths: 532nm for red, orange, pink, brown, and other light pigments; and 1064nm for black, blue, green, and deep dark pigments. An additional 1320nm wavelength allows skin rejuvenation: shrinking pores, removing blackheads, tightening skin, and reducing wrinkles.

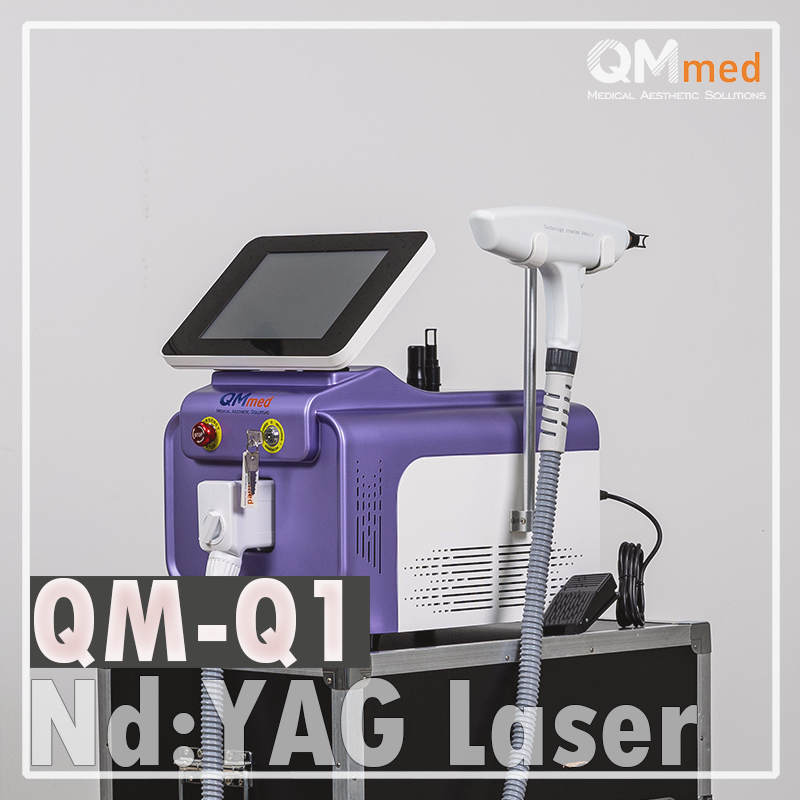

Introducing the QM-Q1 from Beijing QM Medical – a compact, powerful, and versatile system for tattoo removal, pigmentation treatment, and skin renewal.
Key advantages of the QM-Q1
Three wavelengths in one machine. 532nm treats freckles, eyebrow and eyeline tattoos, lip liner, red/brown/pink pigments and telangiectasia. 1064nm treats deeper issues: yellow-brown spots, body tattoos, birthmarks, nevus of Ota, age spots, and black/blue/scarlet/deep coffee pigments. 1320nm provides non-ablative skin rejuvenation.
High peak power with nanosecond pulses. 500W peak power, energy adjustable from 1 to 2000mJ. Spot size 2-7mm, frequency 1-10Hz. Full control for safe, effective treatment.
Five interchangeable tips. Standard tips for 1064nm, 532nm, 1320nm plus two non-pain tips (1064nm and 532nm) for greater comfort.
Advanced cooling. Air cooling plus closed water circulation allows continuous operation for 15 hours.
Portable and easy to use. Net weight only 23kg, dimensions 570x410x540mm. 10.4 inch true color LCD touchscreen. Machine colors can be customized.
