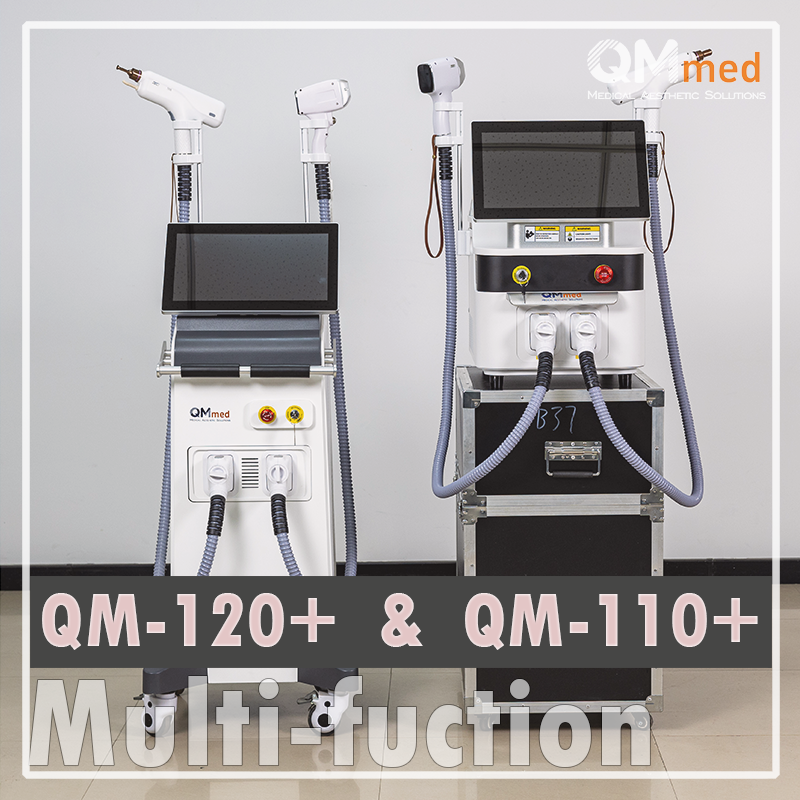

[Premium Recommendation] QM-110+ 2-in-1 Diode Laser & Nd:YAG Laser System

June 8, 2026

— One Machine, Double Revenue, Defining a New Standard in Medical Aesthetics

In today's increasingly competitive medical aesthetic market, how do you cover the widest range of indications and meet the most client needs with minimal investment? Beijing QM Medical proudly introduces the QM-110+ 2-in-1 Smart Aesthetic System, seamlessly integrating classic diode laser permanent hair removal with professional Q-Switched Nd:YAG pigmentation and tattoo removal into a single device. This dual-purpose powerhouse saves space and budget while comprehensively expanding your service offerings.

I. Smart Operating Experience — 15.6-Inch True Color Touchscreen & User-Friendly Interface

The device features a 15.6-inch true-color LCD touchscreen with a self-developed UI design, presenting information clearly and concisely with highly responsive operation feedback.

Secure Access: The system includes password protection for login.
Intuitive Navigation: The main interface is intuitively partitioned, allowing for a one-click selection between the "Diode Laser" and "Q-Switched Laser" functions, enabling technicians to master the device effortlessly without complex training.

II. Diode Laser Hair Removal Module — Comprehensive, Painless, and Efficient

This module offers a highly competitive multi-wavelength configuration, including standard 808nm, 940nm, and 1064nm wavelengths, with an optional 755nm wavelength, covering virtually all skin tones and hair types.

808nm: Suitable for Asian and most general skin tones, perfectly balancing melanin absorption and penetration depth.
940nm: Designed for olive to sun-tanned skin, effectively heating deeper tissues.
1064nm: The premier choice for dark skin tones, ensuring absolute safety without burns due to low melanin absorption and high tissue penetration.
755nm (Optional): Excellent targeting capabilities for fine, light-colored hair on fair skin.

Operating Experience & Specs: The equipment comes with interchangeable, multi-spec handpieces (12 x 12mm, 12 x 24mm, 12 x 36mm, and an optional ∅6mm small spot), allowing for both rapid gliding over large areas and precise treatment of small, delicate zones.

Smart Handpiece: Features an integrated touchscreen, allowing practitioners to fine-tune parameters directly during treatment without returning to the main screen.
Painless Technology: Combined with a built-in 360-degree TEC cooling pad, it provides powerful, continuous cooling, achieving a truly painless and burn-free experience. Permanent hair reduction is typically achieved in just 3 to 5 sessions, yielding exceptionally high client satisfaction.
Power & Performance: Total machine power reaches 3000W; laser power is customizable from 1000W to 2000W; energy density ranges from 1 to 100J/cm²; pulse width is 10 to 300ms; frequency ranges from 1 to 10Hz—delivering powerful and stable output.

III. Q-Switched Nd:YAG Laser Module — The All-Rounder for Tattoos, Pigmentation & Carbon Peels

The Q-Switched module of the QM-110+ performs exceptionally well. With a pulse width of less than 7 nanoseconds, it generates instant high-peak energy to precisely shatter pigment particles. It comes standard with four wavelengths to treat lesions at varying depths:

1064nm: Deepest penetration, targeting black or blue tattoos, eyebrow embroidery, eyeliner, and deep pigmentation like Nevus of Ota.
532nm: Acts on superficial pigment, highly effective for red or brown tattoos, freckles, and age spots.
1320nm: Primarily targets the epidermis and sebaceous glands; it is the core wavelength for the "Black Doll" carbon peel, oil control, acne treatment, and pore reduction.
755nm (Optional): Used for improving dermal melanocytosis and achieving overall skin brightening.

Operating Experience & Specs:

Quick-Change Filters: Features a twist-on/twist-off design, allowing practitioners to pause and swap wavelength filters mid-treatment without any cumbersome tools.
Premium Spot Quality: The output spot is large, round, and delivers strong, evenly distributed energy, guaranteeing significant clinical results every time.
Enhanced Comfort: Highly recommended is the air-blowing handpiece, which simultaneously delivers cold air to the treatment area, drastically improving patient comfort.
Safety & Visibility: Includes an integrated LED light for a clear operating field and a unique safety lock on the trigger to prevent accidental firing when idle. Energy ranges from 1 to 2000mJ, spot size is adjustable from 2 to 7mm, supported by an efficient air-cooling system.
