4 in 1 Multi-function Laser

The Vertical 4-in-1 Multi-function Laser integrates four technologies—IPL, diode laser, Q-switched Nd:YAG, and RF—into one powerful medical laser machine platform, offering a complete solution for both aesthetic and dermatological treatments. Multi-function laser, it supports SHR laser hair removal with fast, pain-minimized results, diode laser hair removal targeting, and Nd yag laser-style pigment and tattoo treatments and RF laser enhances skin tightening and collagen remodeling, making it ideal for non-invasive facial rejuvenation. Whether you're expanding clinical services or seeking a reliable upgrade, this all-in-one platform brings efficiency, versatility, and performance to every treatment room.

Hair Removal (SHR mode) – Fast and comfortable shr laser hair removal for various body areas, including face, underarms, bikini line, and legs.

Skin Rejuvenation – Treats dull skin, reduces sun damage, and improves skin tone.

Vascular Lesion Treatment – Effective for facial redness, broken capillaries, and spider veins.

Pigmentation Correction– Helps fade age spots, freckles, sun spots, and superficial melasma.

Acne Management– Targets active acne and reduces acne-related redness.

Diode Laser Applications

Diode Laser Epilation Hair Removal– Precise and long-lasting reduction of unwanted hair with high melanin selectivity and deep follicle penetration.

All Skin Types Hair Removal – Safe for Fitzpatrick skin types I–V with customizable fluence and pulse durations.

Large-Area Treatments– Ideal for leg super hair removal, arms, and back with minimal discomfort and short treatment time.

Maintenance Sessions – Used in touch-up hair removal sessions due to its effectiveness and speed.

Q-Switched Nd:YAG Laser Applications

Tattoo Removal – Effective for removing black, blue, red, and other colored tattoos through high-energy q-switched laser treatment.

Pigmented Lesions – Treats freckles, age spots, lentigines, café-au-lait spots, and dermal pigmentation.

Skin Brightening / Toning – Low-fluence laser toning for dull skin, enlarged pores, and early melasma.

YAG-Based Home-style Treatments (Professional Level) – Offers safer, more powerful alternatives to yag laser home hair removal devices, under clinical supervision.

RF (Radio Frequency) Applications

Non-invasive Skin Tightening – Stimulates collagen production for firmer, tighter skin on the face and body.

Wrinkle Reduction – Reduces fine lines and improves skin texture over time.

Facial Contouring – Helps lift and define the jawline, cheeks, and neck area.

Post-laser Recovery Support – Enhances healing and complements other laser treatments for better skin renewal.

Cellulite and Body Firming – Used in combination with massage or vacuum RF systems for body shaping.

IPL

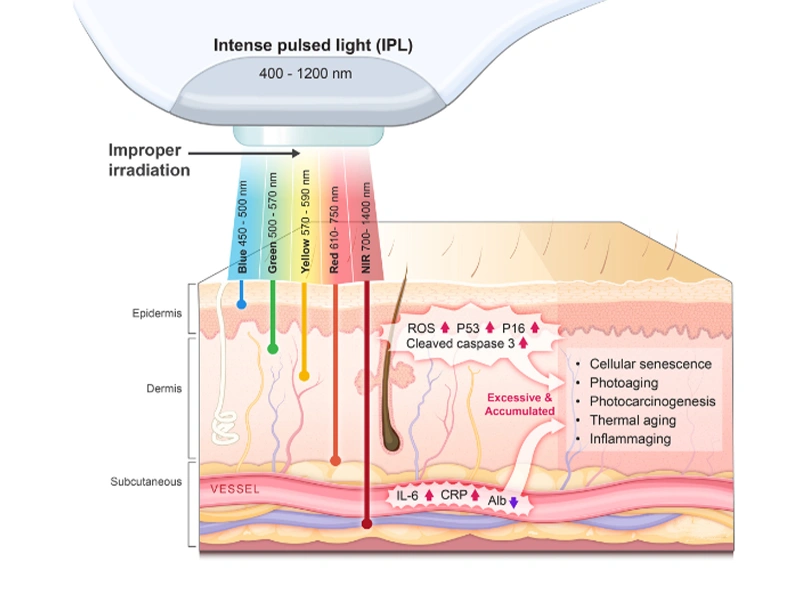

Intense pulsed light (IPL) emits a series of high-energy, broad-spectrum light pulses that penetrate the skin's surface and are absorbed by tissues of varying colors and depths. It primarily operates based on the photothermal effect and selective photothermal damage.

It utilizes specific wavelengths of light that are activated by melanin, the pigment that makes up hair, brown skin, and black skin. Because melanin heats up after absorbing light, melanocytes and melanin-producing cells degenerate, leading to increased melanin production. IPL uses brief, gentle pulses of light to generate heat, permanently damaging hair follicles and preventing future growth. Melanin in hair (which gives hair its color) absorbs the light and converts it into heat. This heat is transferred to the growth cells surrounding the hair root, rendering them ineffective. The pigment is then broken down and excreted from the body.

IPL also stimulates collagen production, rejuvenating the skin for a more youthful, radiant, and brighter appearance while also reducing the appearance of fine lines. Long-wavelength light penetrates the epidermis and reaches deep into the hair follicles. In the targeted area, IPL creates a heating effect that destroys the follicles and hair structure, resulting in permanent hair removal.

Q-switched Nd:YAG laser

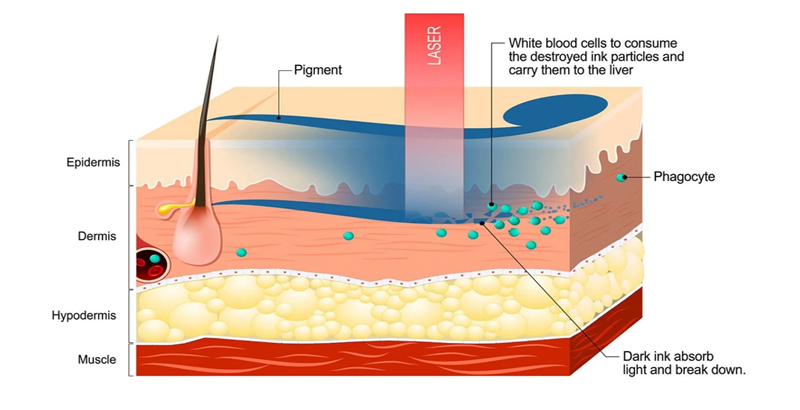

The Q-switched Nd:YAG laser operates by generating a 1064nm laser wavelength using an Nd:YAG crystal. Using a Q switch, the laser's output timing and pulse width are controlled, producing high-energy, short pulses. These pulses are absorbed by melanin particles in the skin and converted into heat, destroying them and achieving the desired effects, such as pigmentation and tattoo removal.

The laser emits pulses of high peak energy within extremely short nanosecond durations. This concentrated energy is selectively absorbed by pigmented tissue, causing a transient explosion or"photoacoustic effect."As a result, the pigment particles are shattered. Some fragments may be expelled from the skin's surface, while others are broken down into particles small enough to be ingested by phagocytes and subsequently eliminated from the body through the lymphatic system.

QM Medical is one of the manufacturers offering laser tattoo removal machines, a cost-effective solution that offers higher returns than devices that use more expensive technologies to achieve the same results.

Diode Laser

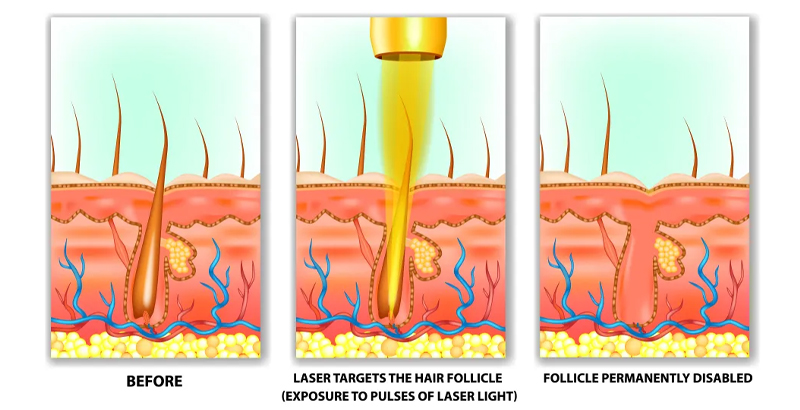

Diode lasers emit 808nm wavelength laser light, which is selectively

absorbed by melanin in hair follicles and converted into heat. This

heatdestroys the hair follicle structure to achieve hair removal or

treat pigmentation problems

Our industry-leading 808nm diode platform operates at high average

power with a 10Hz pulse rate. To complement this focused heating, thesapphire dual cold tip uses direct contact cooling technology to dissipateexcess heat away from the skin's surface, minimizing epidermal temperature rise. This deep, targeted photothermal action combined with efficient surface cooling not only maximizes treatment effectiveness but also significantly improves patient comfort and procedural safety.

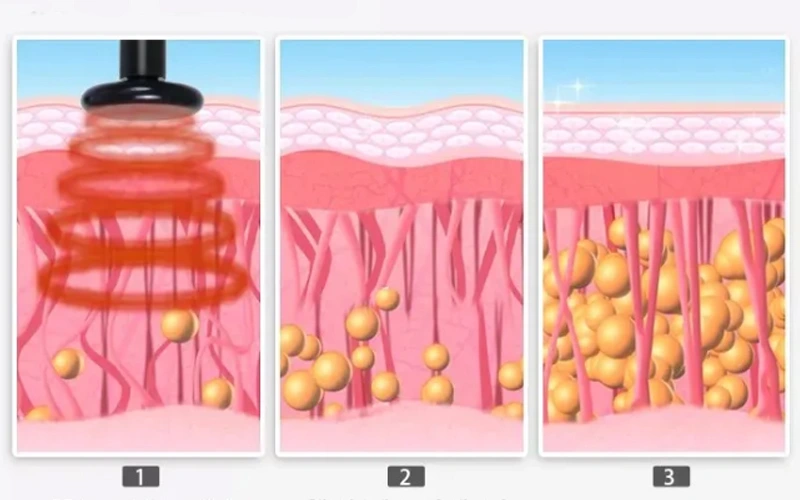

Radio Frequency (RF)

By emitting electromagnetic waves of a specific frequency, typically

between 0.5 MHz and 10 MHz, which penetrate the skin's surface

epidermis and act directly on the dermis or subcutaneous fat layer,

the water molecules, collagen fibers, or fat cells in the tissue generate

heat due to electrical impedance (Joule heating effect). This thermal effect stimulates collagen contraction and regeneration, improves sagging and wrinkles, or destroys fat cells for fat dissolution and body shaping, thereby achieving non-invasive cosmetic effects such as skin tightening, wrinkle removal, and weight loss.

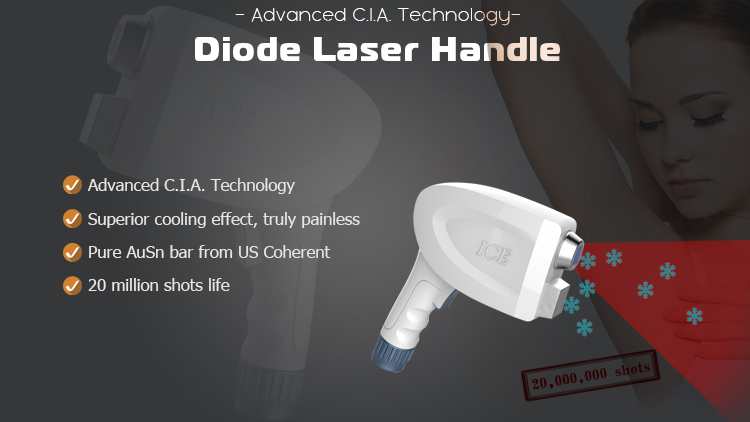

Intelligent Diode Laser: 40 million shots, American Coherent Laser Source

Available in 808nm, 755nm, 940nm and 1064nm wavelengths

CIA™ Technology - Pre-Cooling

A 25mm x 25mm TEC cooling tip cools the skin before, during, and after treatment. This protects the epidermis from damage, reduces pain during hair removal, and improves patient comfort.

ICE™ Technology - Synchronized Contact Cooling

This technology continuously cools the skin during treatment, minimizing the risk of epidermal burns while ensuring heat penetration into the dermis where hair follicles reside.

Handle Advantages

• Classic spot size 15 x 15mm
• Additional cooling tip 25 x 25mm
• Contact cooling: sapphire window (adjustable from 4 to 20°C), cooling area ≥ 1 cm²
• Superior cooling effect, truly painless

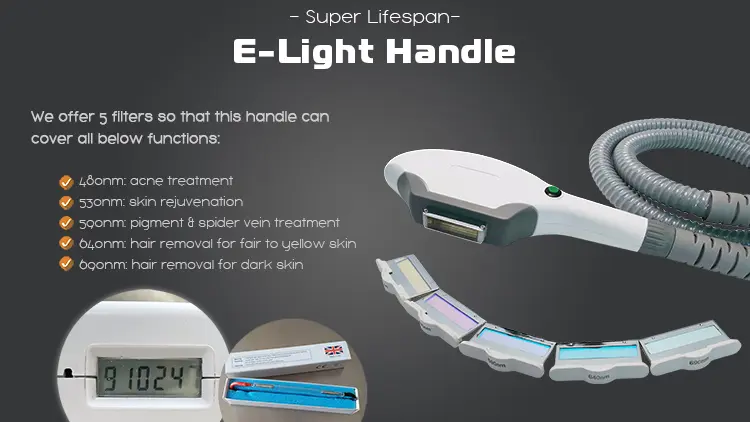

IPL Handpiece: Super Powerful, Million-Time IPL

• Xenon Lamp Imported from the UK
• Two Additional Water Filters Imported from South Korea
• Million-Time IPL Lifespan, at Least 5 Times Longer Than Other Products!

This IPL Handpiece Can Meet the Following Functions:

480nm~1200nm: Acne Treatment

530nm~1200nm: Skin Rejuvenation

590nm~1200nm: Whitening, Hyperpigmentation, and Spider Vein Treatment

640nm~1200nm: Hair Removal for Fair to Sallow Skin

690nm~1200nm: Hair Removal for Dark Skin

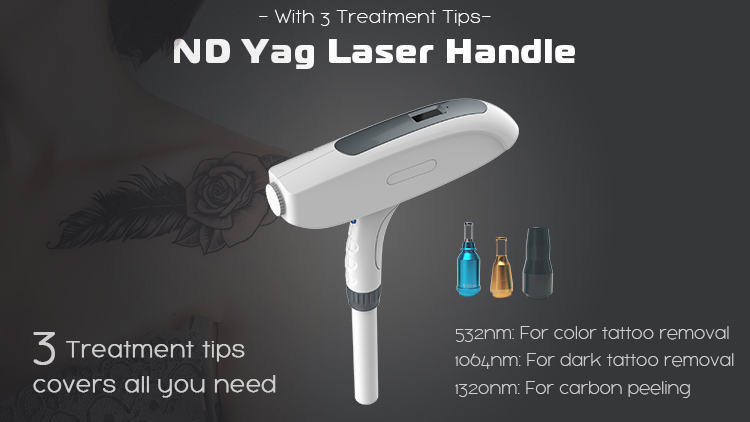

ND Yag Laser Handpiece: 3 million exposures, UK-made bulb

• Ultra-long lifespan, 3 million exposures, at least 5-10 times longer than other products!
• UK-made xenon lamp + Φ6 laser rod
• Large, round beam spot with very even energy output

We offer 3 wavelengths:

532nm: For freckle removal, eyebrow tattoos, failed eyeliner tattoos, tattoos, lip liner, hyperpigmentation, and light-colored capillary dilation (red, brown, and pink).

1064nm: For freckle and tan spots removal, eyebrow tattoos, failed eyeliner tattoos, tattoos, birthmarks and nevus of Ota, hyperpigmentation and age spots, and darker moles (black, blue, scarlet, and dark coffee).

1320nm: For pore tightening, blackhead removal, skin tightening and whitening, skin rejuvenation, and wrinkle reduction.

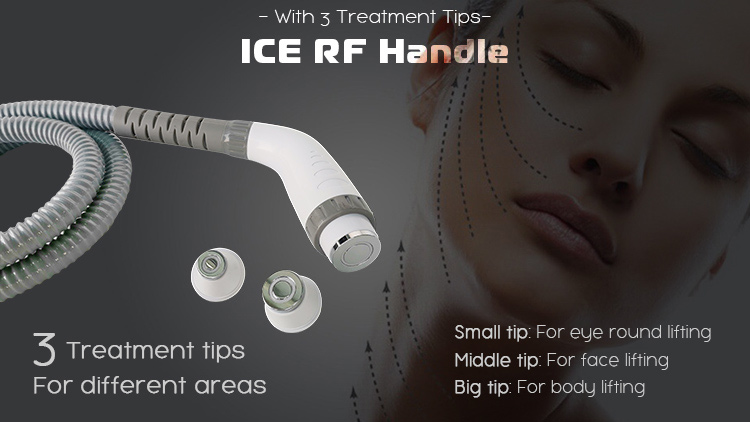

RF Handle : Unlimitted Shots

Energy/max：1-100W

Spot size：20/28/35mm

Pulse interval：0-3000ms

Frequency range: 0.5 MHz–4 MHz (multi-frequency adjustable), accurately matching different tissue impedances

3 Treatment tips for different area:

Small (21mm): for eye round treatment / Middle (27mm): for face treatment / Big (36mm): for body treatment
