Coolsculpting Machine
Technology Type : Cryolipolysis; Vacuum
Application : Body Sculpting; Body Slimming; Cellulite Removal
Brand Name : QM Medical
Delivery Method : By Air, By DHL/TNT/FEDEX/UPS Express Door To Door, By Sea
OEM/ODM : Having Been In The Industry For 19 Years, All Of Our Product Lines Can Be Fully Customized To Meet Your Specific Needs At Competitive Prices.
Suitable For : Beauty Salon, Hospitals, Skin Care Centers, Spa, Etc.
Machine Language : English (Support Customized System Language)
Warranty : Return And Refund In 30 Days For Quality Issues, 2-Year Warranty
Product Training : Get Free One-On-One Clinical Operating Training Service By Adss Senior Beauty Instructor Upon Receiving This Machine.
Certification : All Have Been Approved By International Certifications (CE, FDA, TUV, etc.). Prior To Placing An Order, We Can Furnish Product Certificates Upon Request.Vertical 4D Cryolipolysis Coolsculpting Machine
4D Cryolipolysis is a body contouring technology that uses controlled cooling to target and eliminate stubborn fat cells. This non-invasive fat reduction treatment works by selectively freezing fat cells, inducing apoptosis (cell death) without affecting surrounding tissues. It combines 360° surround cooling, vacuum negative pressure, and heating technology to effectively reduce localized fat and sculpt the body.
The QM-4S is equipped with seven replaceable probes of varying sizes, designed to fit different body contours, including double chin, abdomen, arms, side waist, thighs, and buttocks. The machine’s precisely controlled cooling system helps reduce fat by 20%-27% per session.
Application
The QM-4S cryolipolysis machine is a non-invasive coolsulpting machine designed for effective fat reduction and body contouring. By using precisely controlled cooling technology, it targets and eliminates stubborn fat deposits in localized areas, resulting in a smoother, more toned appearance without the need for surgery or downtime. Its applications extend to a wide range of body areas and concerns, making it ideal for clients looking for a safe, painless, and long-lasting solution to body sculpting. Whether you’re targeting small problem areas or larger fat pockets, the QM-4S offers versatility and precision, delivering effective results for body shaping and fat loss.
1. Body Sculpting
Target stubborn fat in areas like the abdomen, thighs, flanks, and under the chin. The cooling technology reduces fat cells while contouring the body for a more defined shape.
2. Fat Reduction
Effective for reducing fat in areas with thick subcutaneous fat, such as the love handles, upper and lower abdomen, and thighs. It can reduce fat thickness by 20%-27% per treatment.
3. Localized Fat Loss
Focuses on localized fat pockets, which are often resistant to diet and exercise. Ideal for small problem areas like the double chin, arms, and bra line.
4. Cellulite Treatment
Helps reduce the appearance of cellulite by targeting the fat layers beneath the skin, improving skin texture, and enhancing skin elasticity.
5. Non-Surgical Liposuction Alternative
A perfect alternative for individuals looking to achieve fat reduction without the invasiveness and downtime of traditional liposuction.

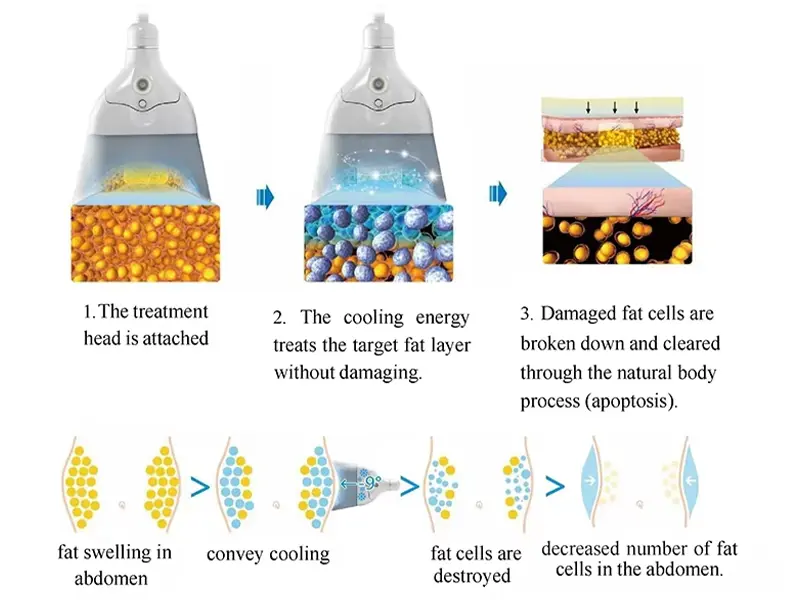

Working Principle
The QM-4S vertical cryo sculpting machine uses cryolipolysis technology, which is a non-invasive technique that cools fat cells to a temperature between -5°C and -16°C, causing them to crystallize and eventually undergo apoptosis. This process effectively eliminates fat cells without damaging the surrounding tissues, as fat cells are more sensitive to cold temperatures than other cells.
Vacuum Negative Pressure – The machine uses vacuum suction to pull the target area’s fat layer into the treatment probe, ensuring that the cooling energy is directly applied to the fat tissue. The suction helps improve blood circulation in the area and ensures uniform cooling.
Heating Phase – Prior to cooling, the treatment area is heated for 3 minutes to enhance local blood circulation and prepare the fat cells for freezing. This phase helps improve the overall treatment efficacy by accelerating fat breakdown.
Cryolipolysis – After the heating phase, the device uses controlled cooling to freeze the fat cells, causing them to undergo apoptosis. The frozen fat cells are naturally absorbed and eliminated by the body’s lymphatic system over 2-6 weeks.
Different size Cooling head application —— 2/4 handles working at the same time.
MINIMUM TEMPERATURECAN REACH -16°C
360° surround cooling silicone handle
Advantages of Vertical 4D Cryolipolysis Coolsculpting Machine
- 360° Surround Cooling – Provides uniform and complete fat freezing with no dead corners, enhancing treatment effectiveness.
- Non-Invasive – A completely non-surgical procedure with no anesthesia, injections, or downtime.
- Comfortable & Painless – Features a heating phase to ensure comfort, and the cooling system is safe and controlled to avoid frostbite.
- Safe & Natural – Fat cells naturally undergo apoptosis without affecting surrounding tissues, ensuring a safe process.

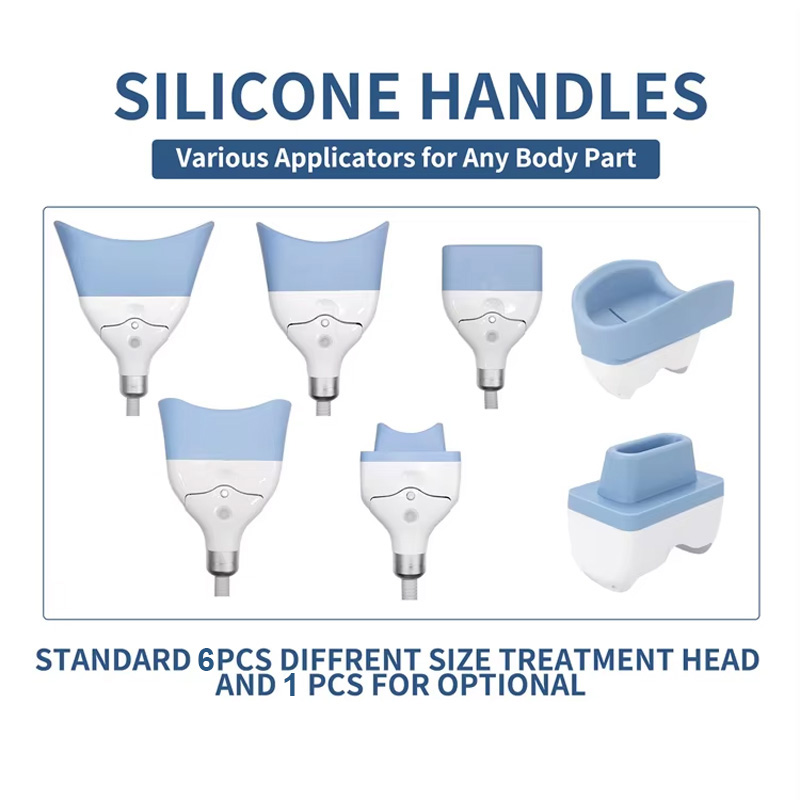

- Many Size Probes – Seven interchangeable probes that can be tailored to treat different body areas, such as the abdomen, thighs, arms, and double chin.
- Efficient Treatment – The machine’s precise temperature control allows for an effective fat reduction process, with visible results within 2-3 months.
- Long-Lasting Results – The fat reduction is permanent, as fat cells are removed and not regenerated.
- No Downtime – Clients can resume their normal activities immediately after treatment with no recovery time needed.
- Easy to Use – Features a 12.1-inch LCD screen for simple and intuitive control. Treatments are quick and efficient, with session times ranging from 30-50 minutes depending on the area.
Waist shaping
Buttocks fat reduction and plasticity
Abdominal fat reduction and plasticity
| Product name | 4D silicon 360 cryolipolysis machine |
| Display screen | 12.1 inch large LCD |
| Cooling temperature | 1-5 gears (cooling temperature 0 to -16℃) |
| Heating temperature | 1-5 gears (preheating for 3 minutes, heating temperature 38 to 45℃) |
| Vacuum suction | 1-5 gears (10-90Kpa) |
| Setting time | 1-99min (default 60min) |
| Input voltage | 110V / 220V |
| Outut power | 3000W |
| Fuse | 15A |
Is this technology safe? Is there scientific evidence to support it?
It's very safe. Cryolipolysis is a non-surgical body contouring technique approved by the US FDA and the Chinese National Medical Products Administration (NMPA). Our brand's devices strictly adhere to these principles and have undergone technical optimization to ensure a safe and comfortable treatment process. We have comprehensive third-party testing reports and certifications, demonstrating their safety and effectiveness.
What are the technical advantages of your device compared to other products on the market?
360° wraparound treatment head: Conforms to various body curves, providing uniform cooling over a large area without blind spots, resulting in higher efficiency.
Intelligent temperature control system: Utilizing imported sensors and intelligent algorithms, this system ensures a constant and precise temperature throughout the treatment, preventing skin frostbite or ineffective results.
High-efficiency, energy-saving compressor: Core refrigeration components are sourced from internationally renowned brands, ensuring powerful and stable cooling and a longer lifespan, ensuring excellent device performance.
Who is not suitable for this treatment?
Treatment is not recommended for the following:
People with conditions that are allergic to cold stimuli, such as cryoglobulinemia and cold urticaria. Those with skin conditions such as dermatitis or eczema in the treatment area, or severe hernias.
Pregnant or breastfeeding women.
Severe heart disease or circulatory disorders.
Those with pacemakers or other metal implants (in the treatment area).
If you're considering purchasing the Vertical 4D Cryolipolysis Coolsculpting Machine, you should be aware of the following advantages :
Many Size Probes – Features 7 replaceable probes (6 for standard) that are designed to fit different body contours, ensuring targeted and effective treatment for areas such as the abdomen, thighs, double chin, and arms.
Vacuum Negative Pressure Technology – Incorporates five levels of suction power that improve blood circulation, enhance fat cell targeting, and ensure uniform energy distribution for better results.
Safe & Natural Therapy – Cryolipolysis technology induces natural fat cell apoptosis without affecting surrounding tissues, offering a safe, non-invasive fat reduction solution.
Built-in Temperature Sensor – Ensures precise temperature control throughout the treatment to avoid any risk of frostbite and to maintain safety.
User-Friendly Interface – A 12.1-inch LCD touch screen with an intuitive interface allows for easy control, setting adjustments, and real-time monitoring of treatment parameters.
No Downtime – The procedure is non-invasive, requires no anesthesia, and allows patients to return to normal activities immediately after the treatment.
Permanent Fat Reduction – The treatment results in permanent fat cell reduction in the treated areas, with visible improvements appearing within 2-3 months.
Efficient Cooling System – Utilizes air cooling technology to maintain consistent and reliable operation without the need for liquid cooling systems, reducing maintenance costs and ensuring longevity.
Reliable & Durable – The machine is designed with high-quality materials, ensuring long-lasting performance and low operating costs.
As triglyceride In fats will be converted into solid in particular low temperatures ,it uses a cooling technology to selectively target fat bulges and eliminate fat cells through a gradual process that does not harm the surrounding tissues , reduce unwanted fat.The contact cooling of the hand piece surface regulates the temperature of the skin and protects fine dermal structures, realizing the fat body-reshape effects while tightening skin!
Cool Body Slimming Machine, a body shaping and fat freezing system designed to reduce cellulite and enhance beauty.
