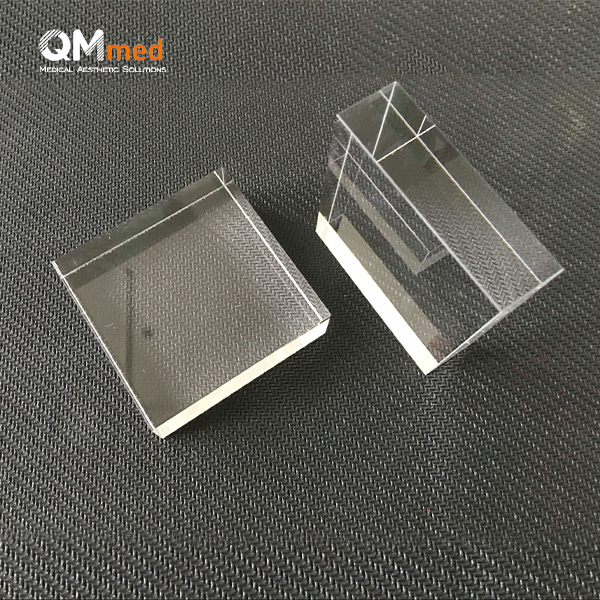

IPL Crystal
Brand Name : QM Medical
Delivery Method : By Air, By DHL/TNT/FEDEX/UPS Express Door To Door, By Sea
OEM/ODM : Having Been In The Industry For 19 Years, All Of Our Product Lines Can Be Fully Customized To Meet Your Specific Needs At Competitive Prices.
Suitable For : Beauty Salon, Hospitals, Skin Care Centers, Spa, Etc.
Machine Language : English (Support Customized System Language)
Warranty : Return And Refund In 30 Days For Quality Issues, 2-Year Warranty
Product Training : Get Free One-On-One Clinical Operating Training Service By Adss Senior Beauty Instructor Upon Receiving This Machine.
Certification : All Have Been Approved By International Certifications (CE, FDA, TUV, etc.). Prior To Placing An Order, We Can Furnish Product Certificates Upon Request.IPL Crystal for Intense Pulsed Light (IPL) Machines
High-Transmission Optical Windows for IPL Handpieces
IPL Crystal, also known as an IPL light guide or sapphire filter window, is a fundamental optical component housed within an IPL handpiece. . It serves as the transmission medium between the xenon flashlamp and the patient’s skin, ensuring that energy is delivered effectively and safely. High-purity crystals with excellent thermal and optical properties are essential to maintain the performance of IPL systems.
Our IPL crystals are available in various sizes and materials, including sapphire, quartz, and glass, and are compatible with a wide range of IPL and SHR devices.
Advantages
High Light Transmission
The crystal ensures effective delivery of broadband light (400–1200nm) with minimal energy loss, supporting consistent treatment results.
Excellent Heat Resistance
Made from durable materials like synthetic sapphire or optical quartz, our IPL crystals withstand frequent pulsing and high temperatures without cracking or discoloration.
Enhanced Patient Comfort
When used with contact cooling systems, the crystal helps reduce discomfort by evenly dispersing heat across the treatment area.
Scratch and Impact Resistant
High surface hardness minimizes damage during routine use and cleaning, extending the handpiece’s working life.
Customizable Sizes and Coatings
We offer standard and OEM sizes, along with optional anti-reflective (AR) or filter coatings to match different treatment needs.
Specifications
| Item | Description |
| Material | Sapphire / Optical Glass |
| Transmission Range | 400–1200nm (standard broadband) |
| Thickness | 1.0mm – 3.5mm (customizable) |
| Dimensions | Standard: 10x30mm, 15x50mm, 20x40mm, 25x60mm (custom sizes available) |
| Surface Finish | Optical-grade polishing with or without AR coating |
| Thermal Tolerance | Up to 150°C (depending on cooling method and material) |
| Optical Properties | High transmittance (>90%) at key IPL wavelengths |
| Packaging | Individual protective cases or bulk packaging for OEM orders |
Installation & Maintenance
Professional Installation Recommended: Replacing the crystal
requires opening the handpiece. It is generally advised that
thisis performed by a qualified technician to ensure proper
alignment, sealing, and avoidance of damage to sensitive internal
components.
Cleaning:Between patients, clean with non-abrasive
optical wipes and alcohol-based solutions. A damaged, chipped,
or clouded crystal must be replaced immediately.
Signs That a Replacement is Needed
Visible Damage: Cracks, chips, or deep scratches
on the surface.
Clouding/Hazing: A milky or hazy appearance that
does not clean off, which scatters light and reduces efficacy.
Burnt Marks: Dark spots or burns on the surface
from accumulated debris or insufficient cooling.
Inconsistent Results: A drop in treatment performance
can sometimes be attributed to a degraded crystal.
Applications
Hair Removal
IPL crystals transmit broadband light to target melanin in hair follicles, making them essential for permanent hair reduction.
Skin Rejuvenation
Used in treatments to improve skin tone, reduce pigmentation, and stimulate collagen production.
Vascular and Acne Treatments
Supports wavelength filtering for targeting vascular lesions or acne-causing bacteria.
OEM Manufacturing and Repairs
Widely used by device manufacturers and repair centers as replacement parts for IPL handpieces.
IPL Crystal FAQ
▶ How often should the IPL crystal be replaced?
There is no fixed timeframe. Replacement is based on inspection. A crystal should be replaced at the first sign of damage, clouding, or if it fails to clean to a clear state. The lifespan depends on usage frequency and care.
▶ Is this crystal compatible with my IPL machine?
Compatibility is determined by the exact make and model of your IPL system. You must provide your machine's model number (e.g., Lumenis One, Alma Harmony) to confirm a correct match. Using an incompatible crystal can damage the handpiece.
▶ Can I clean a scratched or clouded crystal?
No. Surface damage cannot be cleaned or polished away. A damaged crystal must be replaced to maintain treatment safety and effectiveness.
▶ What is the difference between glass and quartz crystals?
Fused quartz offers higher thermal resistance and better UV transmission properties compared to optical glass. It is less likely to crack from thermal stress.
▶ Why is there a need to replace this part?
The crystal is a consumable component. Over time and with use, it is exposed to intense heat and light, which can eventually lead to microscopic degradation, surface coating wear, or physical damage that impacts performance.
Ordering Information
To ensure you receive the correct replacement part, please have the following information ready:
IPL Machine Manufacturer (e.g., Lumenis, Alma, Cynosure)
IPL Machine Model Name/Number (e.g., Lightsheer Desire, Harmony XL, Icon)
Handpiece Model (if known, e.g., MaxG, LightShear)
Contact us with your machine details for confirmation of compatibility and pricing. Using an official or high-quality certified replacement part is essential for maintaining your device's warranty and performance standards.
