IPL Filters
Brand Name : QM Medical
Delivery Method : By Air, By DHL/TNT/FEDEX/UPS Express Door To Door, By Sea
OEM/ODM : Having Been In The Industry For 19 Years, All Of Our Product Lines Can Be Fully Customized To Meet Your Specific Needs At Competitive Prices.
Suitable For : Beauty Salon, Hospitals, Skin Care Centers, Spa, Etc.
Machine Language : English (Support Customized System Language)
Warranty : Return And Refund In 30 Days For Quality Issues, 2-Year Warranty
Product Training : Get Free One-On-One Clinical Operating Training Service By Adss Senior Beauty Instructor Upon Receiving This Machine.
Certification : All Have Been Approved By International Certifications (CE, FDA, TUV, etc.). Prior To Placing An Order, We Can Furnish Product Certificates Upon Request.IPL Filters for IPL / Cell Light Machines
Precision Cut-Off Filters for Targeted Wavelength Treatments (430nm–1200nm)

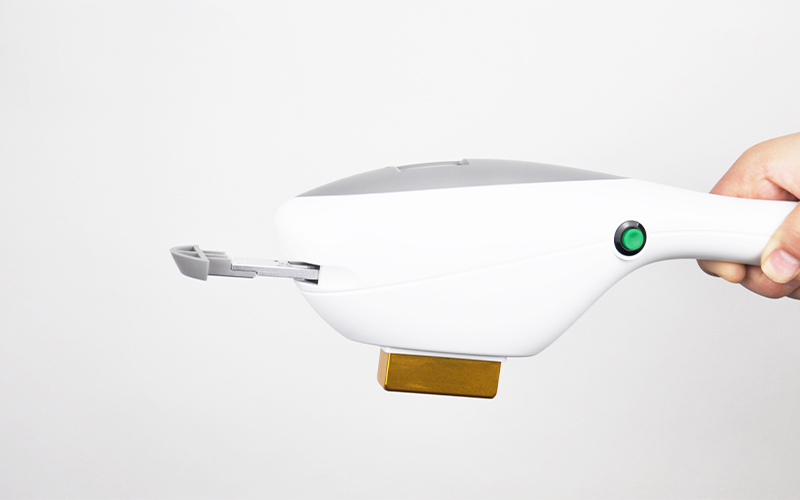

IPL Filters are optical components installed in the handpiece of IPL (Intense Pulsed Light) and Cell Light machines to control the emitted wavelength range. By filtering out unwanted light, these filters allow practitioners to deliver more targeted and effective treatments. Each filter corresponds to a specific wavelength band to address various skin conditions and treatment goals.
Our IPL filters are available in standard wavelengths such as 430nm, 480nm, 530nm, 560nm, 590nm, 640nm, 690nm, and 750nm–1200nm, and can be customized in terms of size and housing to fit different handpiece designs.
Advantages
Wavelength-Specific Treatment Control
Each filter blocks wavelengths below a set cut-off point, allowing precise selection of treatment energy for hair removal, pigmentation, vascular lesions, or acne therapy.
High Optical Accuracy
Manufactured with strict tolerances for wavelength precision and transmission rates, ensuring reliable clinical performance.
Improved Safety and Efficiency
Filters reduce exposure to unnecessary wavelengths, lowering the risk of skin damage and improving treatment focus.
Durable and Heat Resistant
Made from high-grade optical glass or quartz, filters are designed to withstand high temperatures and repeated energy pulses during regular clinical use.
Compatible with Most IPL Systems
Suitable for a wide range of IPL and Cell Light handpieces, including OEM and aftermarket models.
Specifications
| Filter Types | Cut-off filters (long-pass) |
| Wavelengths Available | 430nm, 480nm, 530nm, 560nm, 590nm, 640nm, 690nm, 750nm–1200nm |
| Material | Optical glass / Quartz |
| Coating Type | Hard dielectric coating (anti-reflective, scratch-resistant) |
| Transmission | Transmission Efficiency >90% in pass band, high blocking outside target range |
| Dimensions Standard | 10x30mm, 15x50mm, 20x40mm, 25x60mm (custom sizes available) |
| Housing Options | ABS or metal-framed (for easy replacement in handpiece) |
| Compatibility | Fits most IPL / SHR / Cell Light handpieces |
| Packaging | Individual protective case or OEM bulk packaging |
Installation & Handling Notes
Avoid touching the filter surface directly with fingers; use gloves or tweezers.
Clean with a soft lint-free cloth and optical cleaner when needed.
Inspect regularly for scratches or discoloration to maintain optical performance.
Applications
Wavelength Typical Application
430nm–1200nm Acne treatment (targets porphyrins and sebaceous glands)
480nm–1200nm Vascular lesions, superficial capillaries
530nm–1200nm Pigmentation, age spots, freckles
560nm–1200nm Skin rejuvenation, collagen stimulation
590nm–1200nm Rosacea, facial redness
640nm–1200nm Hair removal for lighter skin types
690nm–1200nm Hair removal for medium to dark skin
750nm–1200nm Deep hair removal, darker and thicker hair
Hair Removal: Longer cutoff filters (640nm, 690nm) are used to target hair follicles while minimizing epidermal melanin absorption.
Vascular Treatments: Filters in the 530nm-590nm range are optimal for targeting oxyhemoglobin in blood vessels.
Pigment Clearance: Shorter filters (430nm-560nm) target melanin in superficial pigmented lesions.
Photorejuvenation:Filters like 560nm or 590nm are used for treating sun damage and improving skin texture.
Acne Treatment: 430nm filter targets porphyrins produced by C. acnes bacteria.
IPL Filters FAQ
▶ How do I know which filter to use for a specific treatment?
Always follow the clinical guidelines provided by your IPL system manufacturer. The choice is based on the condition being treated, the patient's skin type, and the desired depth of penetration.
▶ How long does an IPL filter last?
With proper care, a filter can last for the entire lifespan of the flashlamp. However, it should be replaced immediately if it shows any visible damage or degradation, as this will affect treatment safety and efficacy.
▶ Why does the filter get hot during treatment?
It is normal for the filter to absorb and convert some light energy into heat. This is why IPL systems have integrated cooling mechanisms. The thermal durability of the filter is designed to handle this.
Ordering Information
To ensure correct compatibility and optimal performance, please specify the following when ordering:
Your IPL/Cell Light Machine Model (e.g., Lumenis M22, Cynosure Icon, generic system model)
The Required Cutoff Wavelength(s) (e.g., 530nm, 640nm)
Any Specific Product Code from your original filter or user manual
Contact our support team with your machine details to confirm the exact filter required for your system. Using the correct optical component is essential for treatment safety and effectiveness.
