Laser Tattoo Removal Machine

Portable Q-Switched Nd:YAG Laser Machine

Application

(Q-switched) Nd:YAG systems deliver very short, high-peak-power nanosecond pulses (1064nm, 532nm, 1320nm, 755nm ) that create photomechanical shockwaves to fragment pigment with minimal collateral heating. For tattoo removal (especially black and many colored inks), solar lentigines, café-au-lait macules and other superficial pigmented lesions where precise pigment fragmentation and subsequent clearance by the body are required.

Tattoo Removal: Black, blue, red, pink, purple, and brown pigments.

Pigmentation Therapy: Freckles, melasma, sunspots, and dermal pigmentary conditions.

Skin Rejuvenation: Pore tightening, wrinkle reduction, collagen stimulation.

Acne & Oil Control: Carbon peel technology for clearer, smoother skin.

Black Carbon Head(1320nm): For deep cleaning, skin whitening, skin rejuvenation, shrink pores, acne treatment, wrinkle removal etc.

Working Principle

The Q-switched Nd:YAG laser works on the principle of photodisruption effects. By emitting high peak energy pulses within nanoseconds, the laser targets pigment particles in the skin without damaging surrounding tissue.The laser emits high-energy pulses within nanoseconds, targeting pigment particles embedded in the skin.

Upon absorption, these pigment particles undergo an instantaneous photomechanical effect, shattering into tiny fragments.Some fragments are expelled through the skin’s surface, while others are naturally metabolized and removed by the lymphatic system.

The 1064nm wavelength penetrates deeper layers of the skin, effectively removing black and blue pigments, such as those found in tattoos and dermal pigmentation disorders (e.g., Nevus of Ota).

The 532nm wavelength targets superficial pigments, addressing red, brown, and pink lesions, freckles, solar lentigines, and epidermal melasma.

The optional 1320nm Black Carbon tip provides a"Carbon Laser Facial", which deeply cleanses, tightens pores, whitens skin, reduces acne, and stimulates collagen regeneration for anti-aging benefits.

The 755nm wavelength used for epidermal & dermal pigments, melasma, freckles, skin brightening.



YAG bar size：¢7.

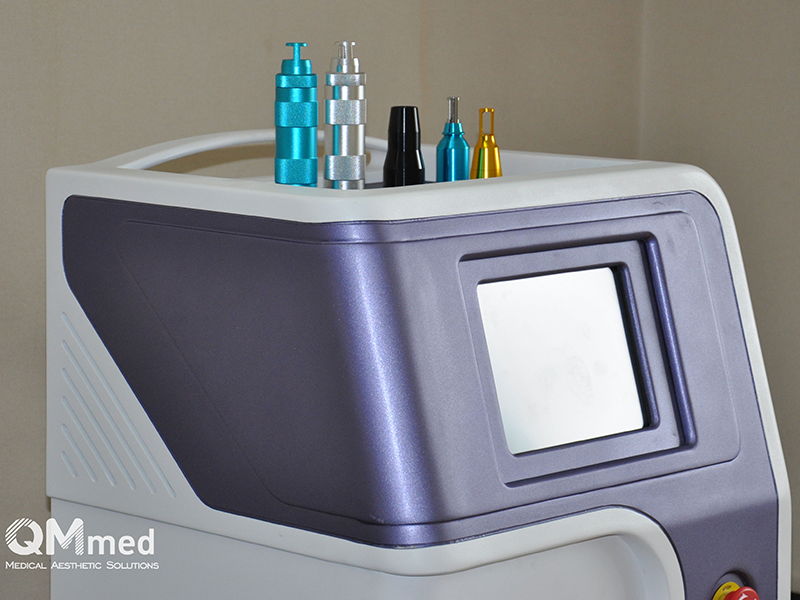

8.4"True Color LCD Touch Screen, Friendly User Interface

Platform design allows for placement of items needed for treatment

Advantages of the Q-switched Nd:YAG laser

• High power: Peak power up to 500W, with nanosecond pulse widths, ensures precise pigment targeting without damaging surrounding skin.
• Multi-wavelength versatility: Available with 1064nm, 532nm, 1320nm and an optional 755nm wavelength, it covers a wide treatment range.
• Excellent cooling system: Dual cooling (air and water) ensures 15 hours of continuous operation without overheating.
• High energy output: Adjustable energy density from 1-1000mJ and spot size from 2-6mm, suitable for both large and delicate treatments.
• Versatile:Suitable for various skin types and treatment areas, from small facial areas to large body areas.

If you're considering purchasing a Q-Switched Nd:YAG Laser device, you should be aware of the following advantages

Wavelength Options – Multiple standard wavelengths (1064nm, 532nm, 1320nm) plus optional 755nm tip, covering tattoo removal, pigmentation therapy, and skin rejuvenation.

Pulse Duration – short nanosecond pulses (<7ns) ensure pigment shattering with minimal thermal damage to surrounding tissue.

Peak Power – High-performance 500W peak power output, guaranteeing strong efficacy even for stubborn pigments.

Laser Lifespan – Extra-long durability with over 2 million shots, reducing maintenance costs and ensuring long-term clinic use.

Operating Time – Continuous 15 hours of operation, ideal for busy clinics with heavy patient flow.

Global Compatibility – 110/230VAC power supply, adaptable to international standards, ensuring seamless use worldwide.

Warranty– QM Medical offers a two-year free warranty

Cooling System – Advanced air cooling + closed water circulation, ensuring machine stability and patient comfort during extended use.

User-Friendly Interface – 8.4-inch true-color LCD touchscreen with many language options, easy to operate globally.

Sleek Design – Stable technology and low operating costs

Safety and Comfort – Selective photothermolysis principle ensures high effectiveness while protecting healthy tissue, minimizing downtime.

Before&After

Eyebrow Tattoo Removal





Facial spot removal



Facial pigmentation removal



Before and after results can show significant clearance of pigmentation and improvement in skin texture.

Technical Specifications

FAQ of the Q-switched Nd:YAG laser

▶  What makes this laser device “portable”?

Portable q-switched laser is compact, lightweight, and easy to move between treatment rooms or locations. Despite its size, it retains the power and effectiveness of a full-size nd yag laser machine, making it ideal for clinics with limited space or mobile practices.

▶  Many laser devices can be quite painful for patients. Is Q-switched Nd:YAG laser treatment painful?

During treatment, some pain and burning may be experienced. This occurs because pigment particles absorb the laser energy and break down into small fragments. If the pain is unbearable, an ice hammer can be used for cooling. However, the pain is generally mild and brief.

▶  How many sessions are needed for tattoo removal?

Tattoo removal typically requires 3-6 sessions, depending on the ink color, depth, and skin type. Darker inks like black respond best to q-switched laser treatment, while colors like green and blue may require more sessions.

▶  Can the QM-Q2 be used continuously for extended periods?

Yes. Thanks to its advanced cooling system, it can operate continuously for up to 15 hours, making it ideal for high-volume, busy clinics.

▶  What is the patient's recovery period after treatment?

The recovery period is expected to be short. Patients may experience temporary redness, swelling, or slight scabbing, which typically subsides after a few days.
