Medical Body Analyzer
Application : Body Analyzer
Brand Name : QM Medical
Delivery Method : By Air, By DHL/TNT/FEDEX/UPS Express Door To Door, By Sea
OEM/ODM : Having Been In The Industry For 19 Years, All Of Our Product Lines Can Be Fully Customized To Meet Your Specific Needs At Competitive Prices.
Suitable For : Beauty Salon, Hospitals, Skin Care Centers, Spa, Etc.
Machine Language : English (Support Customized System Language)
Warranty : Return And Refund In 30 Days For Quality Issues, 2-Year Warranty
Product Training : Get Free One-On-One Clinical Operating Training Service By Adss Senior Beauty Instructor Upon Receiving This Machine.
Certification : All Have Been Approved By International Certifications (CE, FDA, TUV, etc.). Prior To Placing An Order, We Can Furnish Product Certificates Upon Request.QM-520+ Body Composition Analyzer
The QM-520+ is a high-end intelligent body composition analyzer machine, face to InBody analyzer. Based on multi-frequency bioelectrical impedance analysis (BIA) technology, it quickly and accurately measures multiple key health indicators, helping users fully understand their physical condition and manage their health scientifically.
This Body Analyzer scale utilizes 8 electrodes and 5 frequency bands (5kHz/50kHz/250kHz/500kHz/1000kHz) and segmented impedance measurement technology to independently analyze the left and right upper limbs, the trunk, and the left and right lower limbs, ensuring more accurate test results.
Equipped with a 10.1-inch HD touchscreen, the QM-520+ professional human body composition analyzer , more than 50 sets of testing data to build a human data model, advanced IOT intelligent technology and IAP remote gateway technology, to meet various applications of Internet smart devices, with membership system and visitor Face recognition system, IC card and other usage system. It is widely used in hospitals, physical examination centers, gyms, and nutrition management institutions, making it an ideal body analyzer for clinics and wellness facilities.
Applications
| Category | General Medical Care | Specialized Medical Fields | Geriatrics & Long-term Care | Mental Health | Child & Adolescent Care | Public Health & Research | Health & Wellness |
| Scenario | Physical examination | Diabetes specialist hospital | Geriatrics | Psychiatric hospital | Pediatric care | Centers for Disease Control and Prevention | Weight loss center |
| Basic medical care | Endocrinology | Nursing home | Orphanage | Research institutes | Nutrition/Pharmaceutical /Food Company | ||
| Recovery unit | Gynecology | Rehabilitation hospital | Sports system | ||||
| Gym | Fatty Liver Center | ||||||
National Physical Fitness Monitoring Center |
Function include
Height, weight, body fat percentage, body fat mass, body water mass, muscle mass, skeletal muscle, protein ratio, inorganic salt (bone salt), fat removal, basal metabolism, body mass index,(BMI ), visceral fat grade, body age, body composition score, standard weight, weight control, standard muscle, muscle control, fat control
Health Assessment and Physical Examination
Provides multiple key indicators, including weight, BMI, body fat percentage, basal metabolic rate, and visceral fat level, making it suitable for hospital physical examination departments and health management institutions.
Fitness Guidance
Analyzing muscle mass, fat mass, and segmented composition helps fitness trainers and users develop more scientific training and diet plans.
Nutrition Management
Assess nutritional balance using indicators such as water content, protein, and minerals, making it suitable for nutritionists and fat loss management centers.
Elderly and Child Health Monitoring
Built-in report templates for adults and children assess skeletal muscle mass, nutritional status, and body balance.
Working Principle
The body composition analyzer uses bioelectrical impedance analysis (BlA) and uses the bioelectrical properties of human tissue to measure body composition parameters such as body water, muscle, protein, and inorganic sats. it evaluates and checks muscle balance status, obesity status, nutritional status, bone health status, etc., and outputs a variety of professional reports such as professional body composition analysis reports, child-specific reports, etc.
Multi-frequency Measurement
Using five current frequencies (5kHz–1000kHz), it effectively reduces interference and improves detection accuracy.
Segmented Analysis
Measures the upper limbs, trunk, and lower limbs separately, accurately analyzing muscle mass and fat mass in each area.
Whole Body Composition Calculation
Outputs key components such as body water, muscle mass, fat, protein, and minerals, providing a comprehensive view of a person's nutritional and metabolic status.
Health Risk Assessment
Assess obesity and metabolic syndrome risk using parameters such as waist-to-hip ratio, visceral fat level, and body fat percentage.
8 electrodes, 5 frequency bands 5 segments detection
Measurement frequencies > 5, conduct BlA measurement, eliminate interference frequency bands and data, make it easier to obtain effective bioelectrical impedance and multiple sets of data, and improve the effectiveness and accuracy of detection results. The 5 detection frequencies are: 5 kHz/50 kHz/250 kHz/500 kHz/1000KHZ
Segment measurement analysis
Segmental impedance measurement is used to measure the impedance of the left and right upper limbs, trunk, and left and right lower limbs respectively, and directly measure the physical composition of each segment, thereby obtaining more accurate data.
HD color display
10.1 inch touch capacitive screen; Multiple Login method: Face recognition/Tellphone number/lC card /OR to help quickly creat new file
| Networking function | Multiple networking method: Wired/WlFI/Lan/Mobile network |
| Storage Capacity | 500,000 group of data. |
Customized Function | A4 report customized Logo customized |
Data transfer | Connect with different system Software can upgarde online |
Quickly create new files | You can create a new file by swiping lC card; you can also create a new file through face recognition after turning on face recognition. |

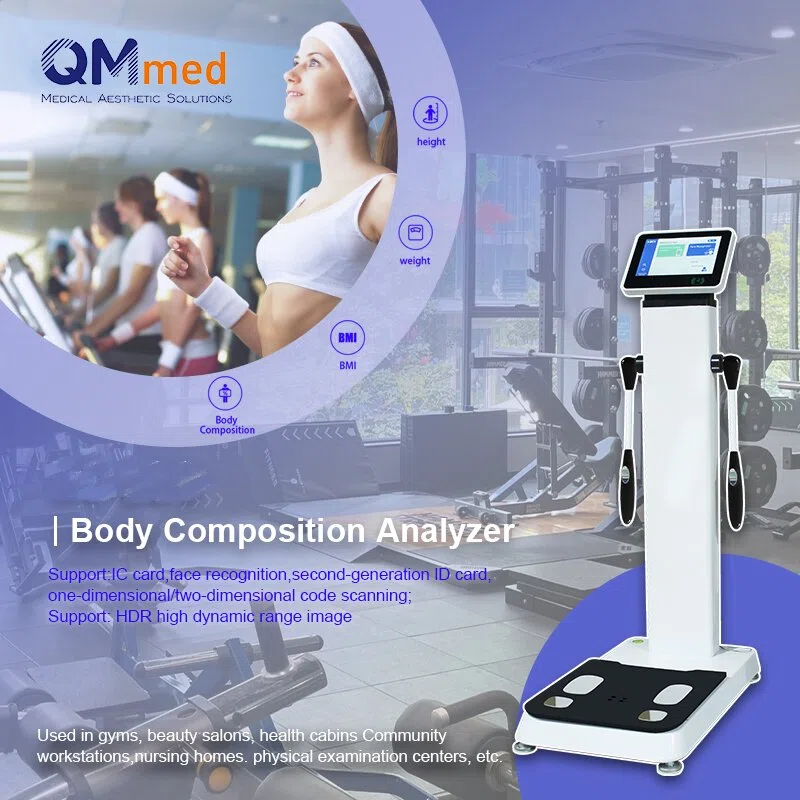

Advantages
- High-precision measurement: Multi-band current combined with eight-electrode technology reduces errors and ensures reliable data.
- Extensive report templates: Supports multiple versions for adults and children, and can be printed in A4 format or emailed.
- Multi-language support: Built-in support for Chinese, English, Arabic, Spanish, French, Portuguese, and other languages, making it suitable for global use.
- Multi-scenario adaptability: Supports network, WiFi, and RJ45, and is compatible with hospital HIS systems and gym membership systems.
- Smart login: Supports IC card, mobile phone, QR code, facial recognition, and other methods for quick file creation.
- Large storage capacity: Stores 500,000 data sets for long-term tracking and comparison.
- Convenient operation: The 10.1-inch HD touch screen provides intuitive operation and fast report generation.
Technical Specifications
| Product Name | QM-520+ | Measuring method | Direct Segmental Multi-frequency Bioelectrical Impedance Analysis Method (DSM-BIA) |
| Electrode Method | Tetrapolar 8-Point Tactile Electrode System | Measurement range | Height: 70-200cm (±0.1cm) Weight: 0.1-400kg (±0.1kg) |
| Testing range: | 3-99 years old. | Testing part | All body ,right leg,left leg,right arm,left arm |
| Login way | Coin accept, IC card login or customized. | Measuring system | Multi-frequency 8-Electrodes |
| Measurement frequency | 5kHz/50kHz/250kHz/500kHz/1000kHz | Measurement category | Body fat, visceral fat, body water, muscle, bone mass |
Range of measurement | 75.0~1,500.00Ω (0.1ΩUnit) | Body parts of surveyor | Body, right leg, left leg, right arm, left arm |
| Power Supply | 110-240V, 50-60HZ | Display | 10.1 inch LCD screen- Resolution: 1280*800 |
| Dimension | 674(L)*410(W)*968(H)mm | Machine Weight | 30kgs |
Body Composition Analyzer FAQ
▶ How long does a QM-520+ measurement take?
A complete measurement takes about 40-60 seconds, generating a detailed body composition report.
▶ Who is the QM-520+ suitable for?
It's suitable for fitness enthusiasts, those seeking weight loss, those undergoing physical examinations, the elderly, and children.
However, it is not recommended for people with pacemakers or metal implants.
▶ Are the results accurate?
The QM-520+ uses multi-frequency segmented BIA measurement, which is more accurate than single-frequency measurement. We recommend taking measurements at fixed times and under the same conditions to compare trends.
▶ Can I export or print the report?

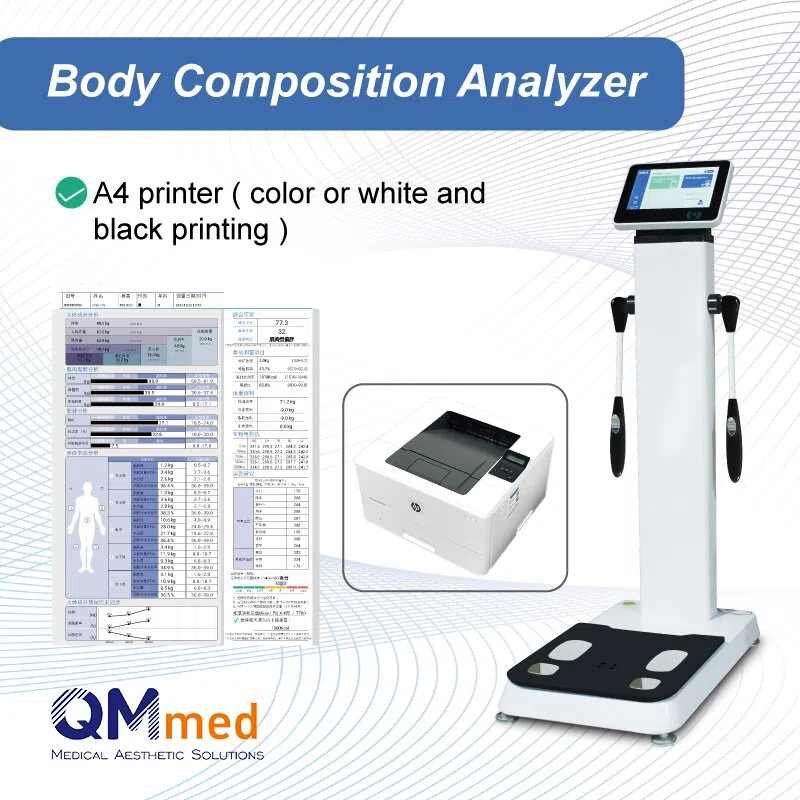

Yes. The QM-520+ supports printing professional A4 reports, and data can also be exported via email, USB flash drive, or online upload.
▶ What precautions should I take before taking a measurement?
Before measurement, fast or wait at least 3 hours after a meal.
Avoid measuring immediately after strenuous exercise.
Keep your hands and feet clean and measure barefoot.
Avoid strong electromagnetic interference in the measurement environment.
