Portable 360 Cryolipolysis Machine
Technology Type : RF; Cryolipolysis; Vacuum
Application : Body Sculpting; Body Slimming; Cellulite Removal
Brand Name : QM Medical
Delivery Method : By Air, By DHL/TNT/FEDEX/UPS Express Door To Door, By Sea
OEM/ODM : Having Been In The Industry For 19 Years, All Of Our Product Lines Can Be Fully Customized To Meet Your Specific Needs At Competitive Prices.
Suitable For : Beauty Salon, Hospitals, Skin Care Centers, Spa, Etc.
Machine Language : English (Support Customized System Language)
Warranty : Return And Refund In 30 Days For Quality Issues, 2-Year Warranty
Product Training : Get Free One-On-One Clinical Operating Training Service By Adss Senior Beauty Instructor Upon Receiving This Machine.
Certification : All Have Been Approved By International Certifications (CE, FDA, TUV, etc.). Prior To Placing An Order, We Can Furnish Product Certificates Upon Request.Portable QM-3S Cryolipolysis Device
The QM-3S Cryolipolysis Device is a portable 360 cryo body contouring system that combines Cryolipolysis, Radio Frequency (RF), Ultrasonic Cavitation, and Laser Therapy. Featuring the latest CryoDefine 360° cooling technology, it targets stubborn fat resistant to diet and exercise, effectively freezing, destroying, and permanently eliminating fat cells beneath the skin without harming surrounding tissues.
With 800W high-power output and an advanced water circulation cooling system, the QM-3S ensures safety, precision, and comfort. Multiple handles of varying sizes allow treatments on the abdomen, thighs, arms, flanks, and chin.
Application
The portable 360 cryo machine is ideal for non-invasive body sculpting and fat reduction, using 360° surround cooling to evenly freeze fat cells across the treatment area for superior results compared to traditional flat cooling plates.
The QM-3S Cryolipolysis Device is suitable for treating the abdomen, flanks, thighs, arms, love handles, back, and double chin. Its multi-handle design allows for simultaneous treatment of multiple areas, while optional RF and cavitation modes enhance skin tightening and toning. Clinics seeking a high-performance cool sculpting machine will find the QM-3S an excellent choice, delivering versatile, cost-effective, and visible results.
Localized Fat Reduction: Abdomen, flanks, thighs, arms, back, and chin
Skin Tightening & Firming: RF energy stimulates collagen and elastin
Body Contouring & Shaping: Non-invasive sculpting for slimmer, toned body lines
Wellness & Pain Relief: Cryotherapy reduces muscle tension and mild inflammation
Enhanced Slimming Effect: Combines cryolipolysis, cavitation, and RF for optimal results
Working Principle

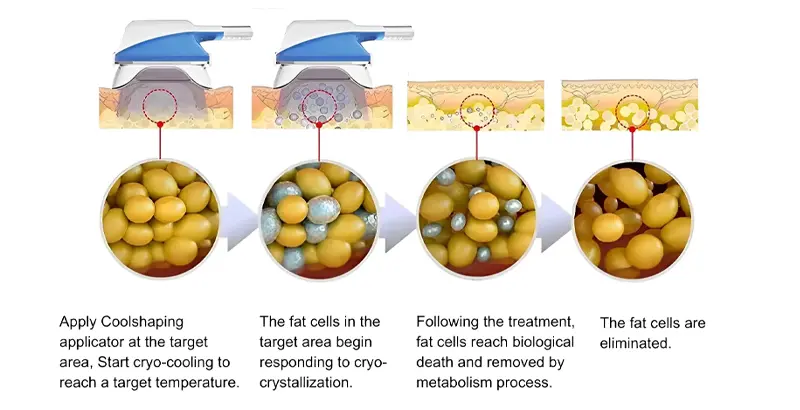

Cryolipolysis (Fat Freezing) :
The portable cryodefine 360° applicators wrap around the treatment area, lowering the temperature of subcutaneous fat until lipids crystallize. Fat cells then undergo apoptosis (programmed cell death) and are gradually eliminated by the body’s lymphatic system, resulting in natural, long-lasting fat reduction.

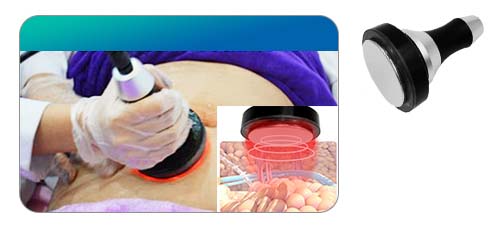

Ultrasound Cavitation (40kHz):
Ultrasonic waves generate micro-bubbles in adipose tissue, collapsing to create mechanical vibrations that break down fat cell membranes, enhancing fat-reduction effects.

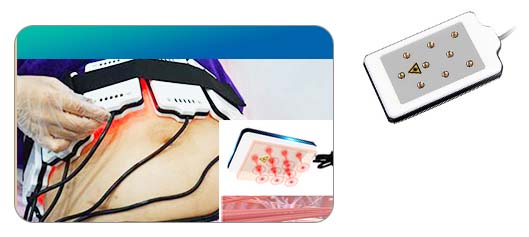

Lipo Laser:
Low-level laser penetrates superficial layers, boosting blood microcirculation and cellular metabolism, accelerating triglyceride breakdown into glycerol and free fatty acids, supporting fat elimination.

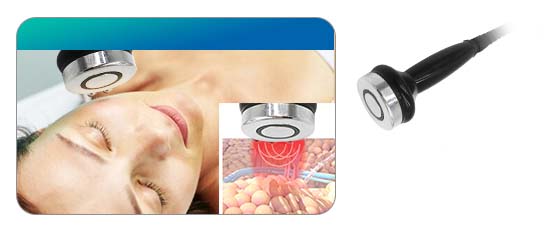

Radio Frequency (5MHz RF):
RF energy heats deep dermal layers, stimulating collagen contraction and neocollagenesis, preventing post-fat-reduction sagging and improving skin elasticity, firmness, and texture.
By combining these four technologies, the QM-3S achieves fat reduction, body contouring, skin tightening, and improved circulation—offering comprehensive, non-invasive body sculpting.
QM-3S Applicators

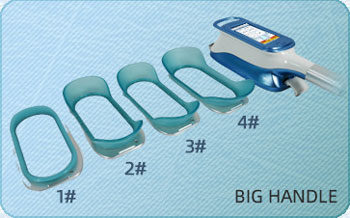

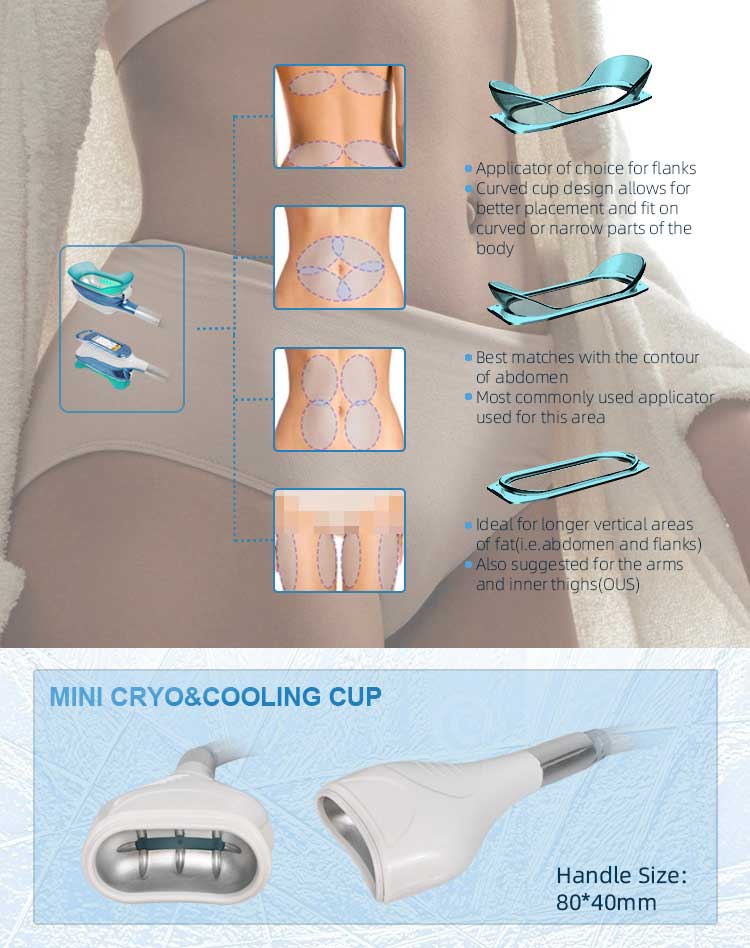

Large Cryo Handle Sizes:
#1 Applicator - 195*85mm: Ideal for vertical areas like abdomen, flanks, and arms
#2 Applicator - 210*90mm: Best for abdomen, most commonly used
#3 Applicator - 215*100mm / #4 Applicator - 230*105mm: Curved design for flanks or narrow areas

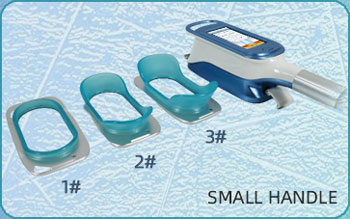

Medium/Small Cryo Handle Sizes:
1#: 140*70mm / 2#: 155*80mm/ 3#: 165*90mm
Advantages
- Simple, Safe & Comfortable: Non-invasive, no needles, no anesthesia, no downtime

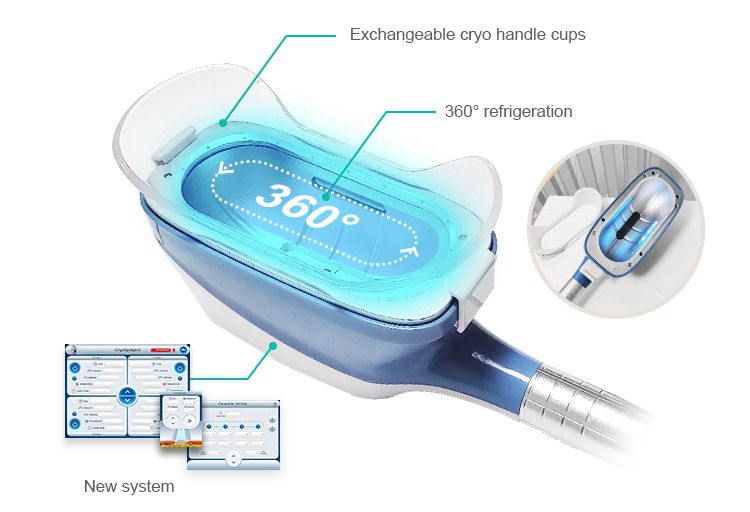

- 360° Surround Cooling Technology: Even fat freezing, mini applicators for double chin and knees
- Flexible & Customizable Treatments: Multiple applicator sizes, fast exchange system, adjustable energy levels
- Four-in-One Solution: Combines Cryolipolysis, Cavitation, RF, and Laser Therapy
- Comfort & Safety: Ergonomic handles, real-time temperature monitoring, CE-certified components
- High Efficiency: Dual or quad applicator operation for multiple areas at once
- User-Friendly: 10.4-inch LCD multi-language touchscreen, plug-and-play technology
- Visible Results: 25–30% fat reduction per session, long-lasting outcomes
Before&After
Abdominal fat reduction and plasticity
Abdominal fat reduction and plasticity
Arm fat reduction and plasticity
| Model | QM-3S |
| Rated voltage | AC 110~220V |
| Net weight | 35KG |
| Rated power | 800W |
| Gross weight | 40KG |
| Frequency | 50~60Hz |
| Product Size /W*D*H | 63*55*96cm |
| Package Size /L*H*W | 64*43* 64cm |
| Handle control method | Touch |
| Screen size | 8.0 |
| Handle screen size | 4.5 |
| Handle material | Silicon |
| Handle temperature | ±10°C |
| Pressure output | 0.08MPa |
| Refrigeration method | Water cycle |
| RF face | 3MHz |
| RF frequency | 5MHz |
| Large cryo handle size | 1# 180*70mm, 2# 200*70mm, 3# 210*80mm, 4# 230*80mm |
| Small cryo handle size | 1# 135*60mm, 2# 145*70mm, 3# 155*70mm |
| Double chin handle size | 80*45mm |
| Cavitation head frequency | 40KHz |
| Laser power | 100mw/pcs |
| Laser | Wavelength 650nm |
| Number of laser lights | 72PCS |
QM-3S Portable Cryolipolysis Device FAQs
▶ Will the treatment be painful?
A: Most patients feel mild pulling, tingling, or cooling initially. RF and low-level laser add warming and soothing effects for comfort.
▶ How many sessions are needed for visible results?
A: Some results may be visible after a single session, but optimal results usually require follow-ups every 6–12 months.
▶ Who is suitable for cryolipolysis treatment?
A: Safe for people with mild to moderate fat deposits or general obesity. Ideal for spot reduction and gradual, natural fat reduction.
▶ How should I prepare for treatment?
A: Little preparation is needed. Doctors will assess if you’re a candidate for portable 360 cryo treatment. A healthy body and fit condition are ideal.
▶ What happens to the fat after treatment?
A: Crystallized fat cells undergo apoptosis and are naturally eliminated by the lymphatic system. Fat cells do not regenerate, but maintaining a healthy lifestyle is recommended.
▶ How durable is the machine?
A: QM-3S uses a stable water circulation cooling system suitable for high-frequency use. Free technical training and after-sales support ensure reliable operation.
▶ Why Choose QM-3S Cryolipolysis Device
- Cryolipolysis Technology: Safe fat freezing down to -11℃
- Multiple Applicator Sizes: Treat abdomen, thighs, arms, and chin
- Dual/Quad Handle Operation: Treat multiple areas simultaneously
- Precision Cooling Control: Uniform fat freezing, no tissue damage
- Powerful Suction: Adjustable vacuum for comfort
- Long Continuous Operation: 12–15 hours of continuous work
- Warranty: 2-year free warranty
- User-Friendly Touch Screen: 10.4-inch multi-language interface
- Non-Invasive Slimming Expert: 25–30% fat reduction per session, no downtime
This portable cryolipolysis machine is perfect for clinics and medspas seeking a versatile, high-performance fat reduction system with integrated cool sculpting machine, cryolipolysis machines, cryodefine, and portable 360 cryo technologies.
