HIFU Body Shaping RF Vaginal care
Technology Type : HIFU/Ultrasound
Application : Wrinkle Removal; Skin Tightening; Facelift
Brand Name : QM Medical
Delivery Method : By Air, By DHL/TNT/FEDEX/UPS Express Door To Door, By Sea
OEM/ODM : Having Been In The Industry For 19 Years, All Of Our Product Lines Can Be Fully Customized To Meet Your Specific Needs At Competitive Prices.
Suitable For : Beauty Salon, Hospitals, Skin Care Centers, Spa, Etc.
Machine Language : English (Support Customized System Language)
Warranty : Return And Refund In 30 Days For Quality Issues, 2-Year Warranty
Product Training : Get Free One-On-One Clinical Operating Training Service By Adss Senior Beauty Instructor Upon Receiving This Machine.
Certification : All Have Been Approved By International Certifications (CE, FDA, TUV, etc.). Prior To Placing An Order, We Can Furnish Product Certificates Upon Request.22D Max Ultra HIFU
–Expanded Aesthetic System with Integrated Private Care

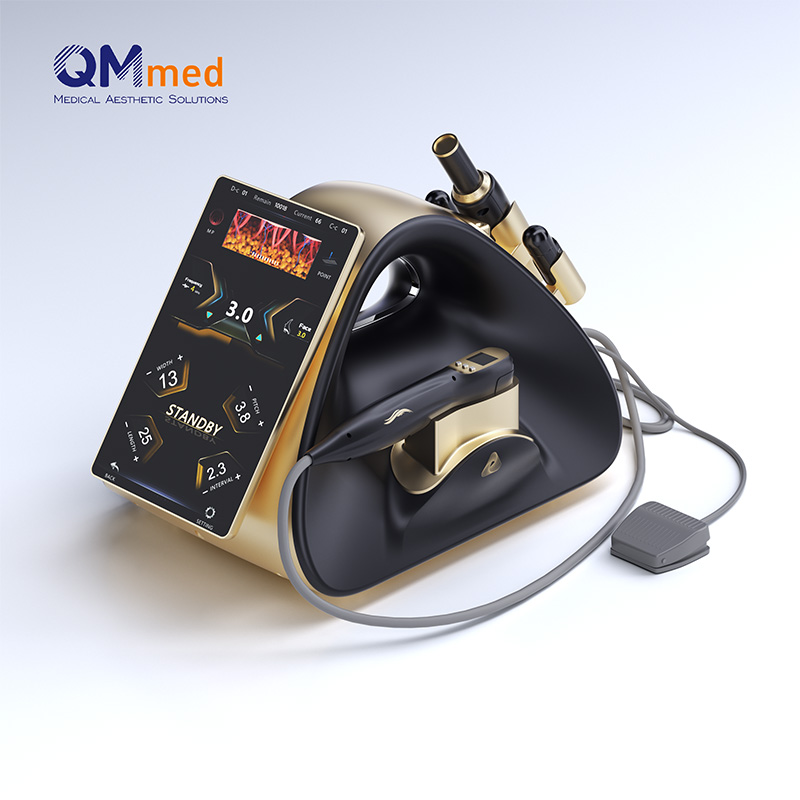

The 22D Max Ultra is an advanced aesthetic platform that builds upon the proven capabilities of the 22D Max system by introducing a dedicated private care module. This all-in-one device seamlessly combines Multi-Line HIFU (High-Intensity Focused Ultrasound) with RF Lipo technology for facial and body contouring, while adding a specialized treatment arm for feminine wellness. As a versatile HIFU facial machine, it delivers exceptional lifting and tightening results, stimulates collagen regeneration, and restores a youthful appearance—now extended to include non-invasive intimate rejuvenation.
In addition, the 22D Max Ultra functions as a professional liposonix machine, effectively reducing localized fat deposits while sculpting the body. Its multi-mode design and three-handle configuration make it an ideal choice for clinics seeking a high-performance solution that addresses face wrinkle removal, body slimming, and vaginal tightening—all within a single, streamlined system. Every treatment is precise, non-invasive, and involves minimal downtime, ensuring clients enjoy visible, long-lasting outcomes.
Working Principle
What is 22D Max Ultra High-Intensity Focused Ultrasound?
This system integrates Multi-Line HIFU, RF Lipo, and a dedicated private care module. HIFU delivers focused ultrasound energy deep into skin layers, generating controlled heat that stimulates collagen production, tightens tissue, and lifts facial contours. RF Lipo technology uses radiofrequency energy to warm deeper tissues, accelerating fat metabolism and further promoting collagen regeneration. The synergy of these technologies ensures comprehensive results for facial lifting, body contouring, and anti-aging. The new private care component applies high-intensity focused ultrasound to the vaginal SMAS layer, providing non-surgical tightening and rejuvenation.
13D HIFU

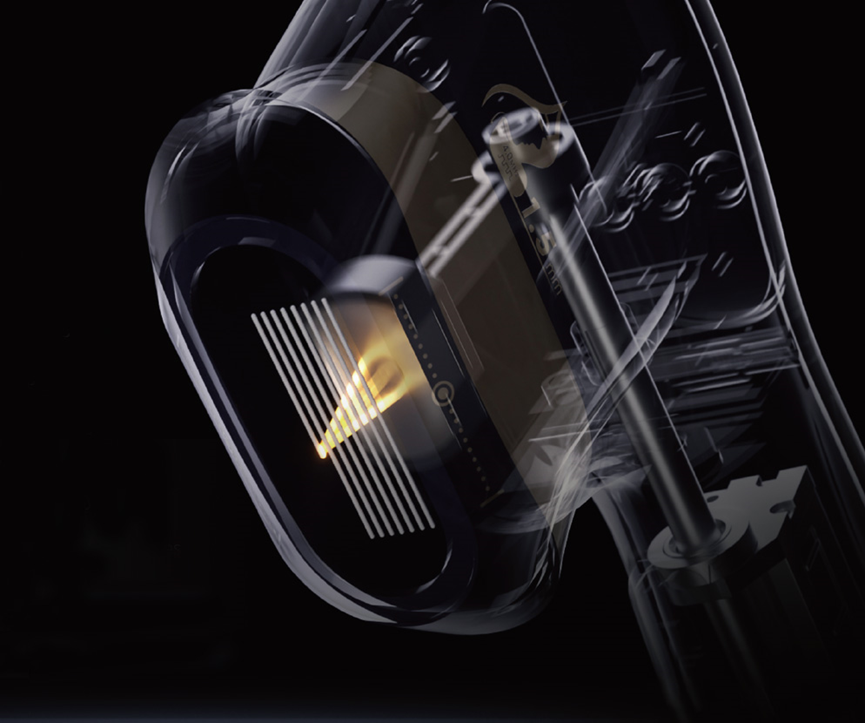

HIFU energy is focused in a spatially coordinated manner to minimize damage outside the target area, producing both thermal and mechanical effects. This technology supports full-layer anti-aging through point and line modes, enabling multi-layer lifting and tightening.
18D HIFU RF Lipo
Ultrasound waves are converted into thermal energy without damaging blood vessels. The heat permanently disrupts subcutaneous fat, reducing fat cell counts while stimulating collagen contraction and thickening for firmer skin.
30 RS Private Care Technology
High-energy focused ultrasound precisely targets the vaginal SMAS layer at 4.5mm depth to lift the fascia and resolve laxity, while 3.0mm depth action reorganizes collagen in the submucosal layer to restore elasticity. Energy is delivered evenly across the treatment area without compromising the mucosal surface, ensuring safety and efficacy.

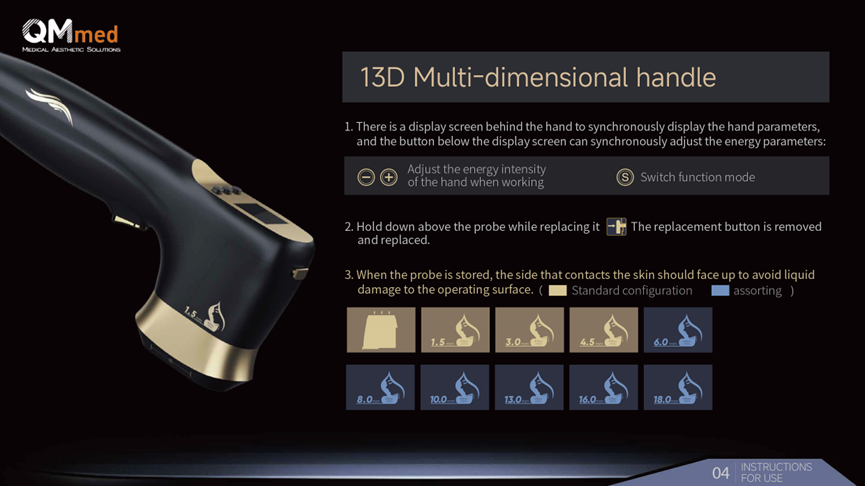

13D Multi-dimensional Handle
Designed for facial lifting and skin firming. Cartridges deliver ultrasound into the dermis and SMAS layers, stimulating collagen remodeling and reducing laxity.
- Standard cartridges: 1.5mm, 3.0mm, 4.5mm
- Optional cartridges: 6.0mm, 8.0mm, 10.0mm, 13.0mm, 16.0mm, 18.0mm
A built-in display screen shows real-time parameters, and buttons below allow synchronous energy adjustment.

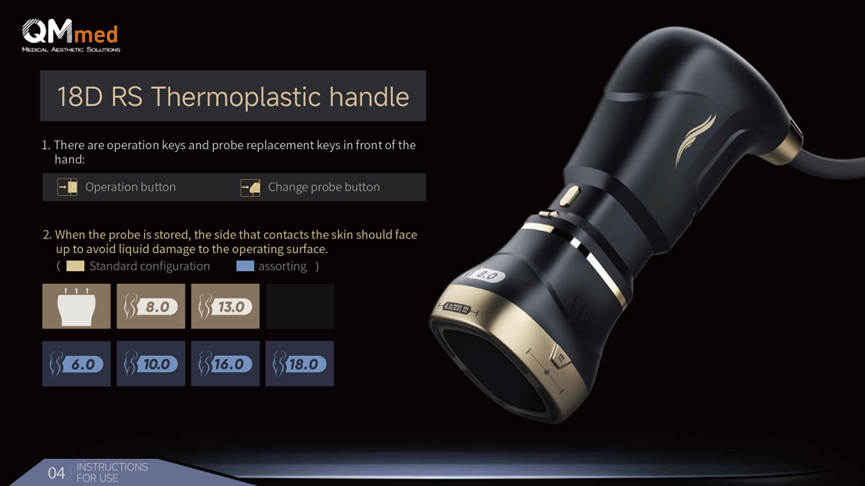

18D RS Thermoplastic Handle
Focused on body contouring and fat reduction. The new AI spiral output mode distributes energy evenly, breaking down fat layer by layer.
- Standard cartridges: 8.0mm, 13.0mm
- Optional cartridges: 6.0mm, 10.0mm, 16.0mm, 18.0mm

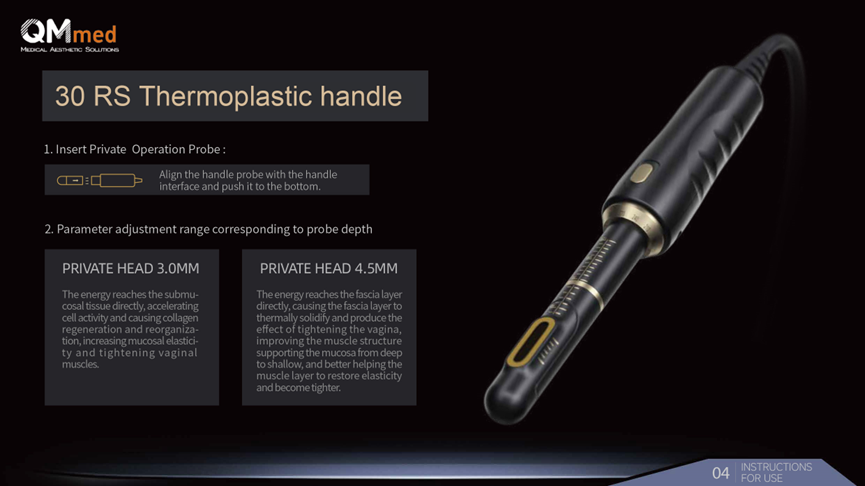

30 RS Private Care Handle (NEW)
Exclusively for feminine wellness treatments. This handle uses high-intensity focused ultrasound with dedicated probes to tighten vaginal tissue and restore elasticity.
- Probe configurations: 3.0mm (submucosal collagen remodeling) and 4.5mm (SMAS fascia tightening)
The handle includes intuitive controls and a pressure sensor calibration function to ensure precise, comfortable treatments. A measurement protocol using an airbag probe allows practitioners to quantify baseline laxity and post-treatment improvement.
Brushless Motor Parameters
- High accuracy – Built-in multiple position sensors ensure exact positioning, improving operational efficiency.
- Speed – Exceeds 1600 revolutions per minute.
- High torque – 30mNm torque adapts seamlessly to all skin types.
- Low noise – Operates as quietly as a sleeping infant.
- High frequency – Up to 20,000Hz.
- Long life – Efficient brushless motor combined with high-strength planetary gear.
Key Advantages
- Three-handle versatility – 13D for facial lifting, 18D RS for body contouring, and 30 RS for private care, all in one machine.
- Multi-line and circular output – Allows marking with lines or circles to suit different treatment areas and user preferences.
- 13D handle efficiency – Delivers 13 lines per press, covering large areas quickly to save treatment time.
- 6.78MHz radio frequency – High-energy output enhances body slimming and skin tightening results.
- Extensive probe selection – 5 standard + 7 optional probes across handles, catering to diverse client needs.
- Foot pedal control – Enhances safety during procedures.
- Two working modes – MP (line) and Point (dot) modes, allowing combined nursing protocols.
- Simultaneous handle operation – Two handles can work together to reduce overall treatment time.
- Smart touchscreen interface – Simplifies parameter adjustment and monitoring.
Comprehensive Benefits
Triple Technology Integration The 22D Max Ultra combines Multi-Line HIFU, RF Lipo, and dedicated private care technology. This unified platform addresses facial laxity, stubborn fat deposits, and intimate wellness concerns in a single system. | Facial Lifting and Tightening By targeting the dermis and SMAS layers, the system lifts sagging skin, reduces fine lines and wrinkles, and restores youthful contours. Collagen and elastin production are stimulated for firmer, more resilient skin—ideal for non-surgical face wrinkle removal. | Skin Texture Enhancement Activation of fibroblasts and collagen regeneration improves skin tone, elasticity, and pore size, resulting in a smoother, brighter, healthier complexion. |
Body Contouring and Fat Reduction Integrated RF Lipo technology targets localized fat on the abdomen, thighs, arms, and flanks, simultaneously promoting fat breakdown and skin tightening—delivering results comparable to a dedicated liposonix machine. | Intimate Wellness Rejuvenation High-intensitym focused ultrasound precisely treats the vaginal SMAS and submucosal layers. The 3.0mm probe reorganizes collagen to restore elasticity, while the 4.5mm probe tightens the fascia for comprehensive vaginal laxity correction. A built-in measurement protocol provides objective pre- and post-treatment assessment. | Multi-Layer, Customized Anti-Aging Full-layer treatments are supported through point, line, and surface modes. Customizable programs ensure optimal results for various skin types, ages, and treatment areas, delivering a tailored, non-invasive anti-aging solution. | Non-Surgical with Minimal Downtime Clients resume daily activities immediately after treatment. The combination of precision HIFU technology and safe RF Lipo ensures comfortable sessions with consistent, natural-looking outcomes. |
Before&After
Jawline tightening
Lip wrinkle removal and firming
Forehead wrinkle removal
Technical Parameters
Product name | 22D Max Ultra |
Features | Slimming, Skin Firming, Rejuvenation, Private Care |
Shots | 10,000 Shots |
Technology | High Intensity Focused Ultrasound + RF Lipo + Private HIFU |
13D Cartridges | Standard: 1.5mm, 3.0mm, 4.5mm |
18D RS Cartridges | Standard: 8mm, 13mm Optional: 6mm, 10mm, 16mm, 18mm |
30 RS Cartridges | 3.0mm, 4.5mm (private care) |
Package Dimensions | 60*43*57cm |
Gross Weight | 20kg |
Power | 650W |
Voltage | 110V/220V, 50-60Hz |
22D Max Ultra FAQ
▶What makes the 22D Max Ultra different from the standard 22D Max?
The Ultra model adds a dedicated private care handle (30 RS) with 3.0mm and 4.5mm probes, specifically designed for non-invasive vaginal tightening and rejuvenation. This expands the system’s capabilities beyond facial and body treatments to include feminine wellness.
▶Can the 22D Max Ultra treat wrinkles and fine lines?
Yes. The 13D handle targets the dermis and SMAS layers to stimulate collagen regeneration, effectively reducing facial wrinkles and fine lines for firmer, smoother skin without surgery.
▶ Is the system suitable for body slimming?
Absolutely. The 18D RS handle uses RF Lipo technology to reduce localized fat deposits and tighten skin on areas such as the abdomen, thighs, arms, and flanks, functioning as a professional liposonix machine.
▶How does the private care treatment work?
The 30 RS handle delivers high‑intensity focused ultrasound to the vaginal SMAS layer (4.5mm) and submucosal layer (3.0mm). This stimulates collagen reorganization and fascia tightening, improving vaginal laxity and elasticity. A built-in airbag measurement system helps assess baseline relaxation and track improvement.
▶Where can I find reviews or feedback for the 22D Max Ultra?
Many clinics report excellent results with the 22D platform, highlighting its versatility, patient comfort, and noticeable outcomes. For Ultra-specific case studies and testimonials, please contact our sales team.
