3-in-1 Titanium Ultrasonic

Overview

The Titanium Ultrasonic HIFU is a brand-new generation anti-aging platform that integrates high-intensity focused ultrasound (HIFU) with multi-frequency ultrasonic technology and thermal tightening (Hot Maggie) - all in one intelligent system. Designed for professional use in clinics, medical spas, and beauty centers, it delivers non-invasive face lifting, body contouring, and skin rejuvenation with minimal downtime.

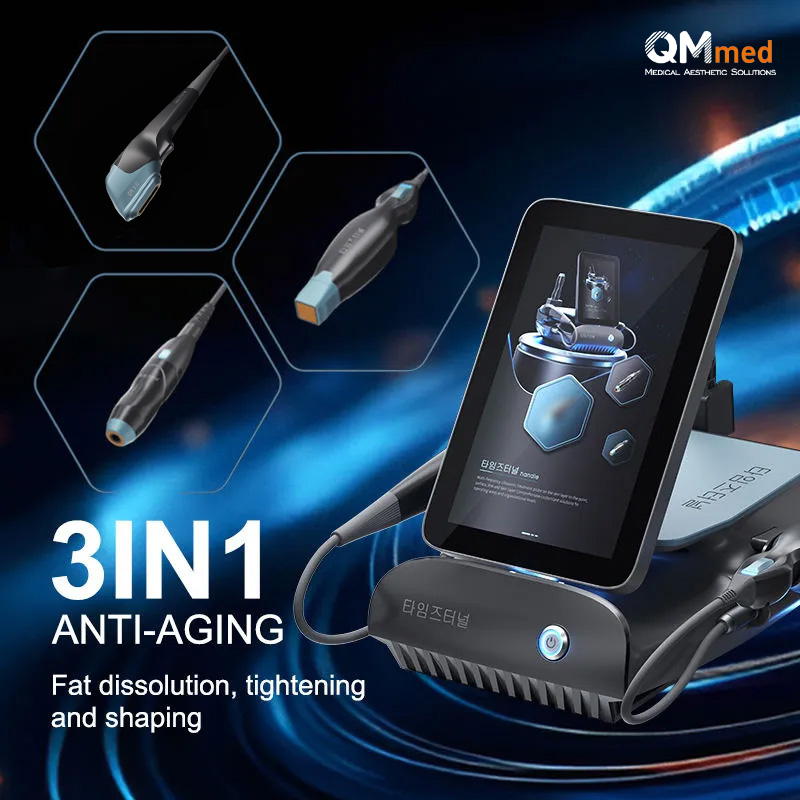

Unlike traditional single-handle devices, the Titanium system comes with three interchangeable handles (Ultrasonic Knife, Ultrasound Gun, and Hot Maggie) and a wide selection of probes (7 for the Ultrasonic Knife, 5 for the Ultrasound Gun, and 3 for Hot Maggie). This flexibility allows practitioners to precisely target different skin layers - from superficial epidermis to deep SMAS - and to treat delicate areas like the periorbital region as well as large body areas.

 ​​​​​

Working Principle

The Titanium Ultrasonic HIFU system uses focused ultrasound energy at frequencies of 2MHz, 4MHz, and 5.5MHz. These frequencies are selectively absorbed by specific tissue depths, generating precise thermal coagulation points (typically 60-70°C) without damaging the overlying skin.

• Deep SMAS lifting (4.5mm probe): Energy reaches the superficial musculoaponeurotic system (SMAS) - the same layer targeted in surgical facelifts - causing immediate contraction and stimulating long-term collagen remodeling.

• Dermal tightening (3.0mm / 2.0mm probes): Heat stimulates fibroblast activity, producing new collagen and elastin for firmer, smoother skin.

• Superficial rejuvenation (1.5mm probe): Fine lines and skin texture improve as the epidermis is gently thermally stimulated.

• Body contouring (6.0mm, 9.0mm, 13mm probes): Deeper penetration targets subcutaneous fat and fibrous septae, reducing localized fat deposits and tightening loose skin on the abdomen, thighs, arms, and flanks.

The Themage handle delivers volumetric radiofrequency heating to contract existing collagen and trigger new collagen synthesis, complementing the point-focused HIFU action for comprehensive skin tightening.

Key Features & Advantages

1. Three-Handle Versatility

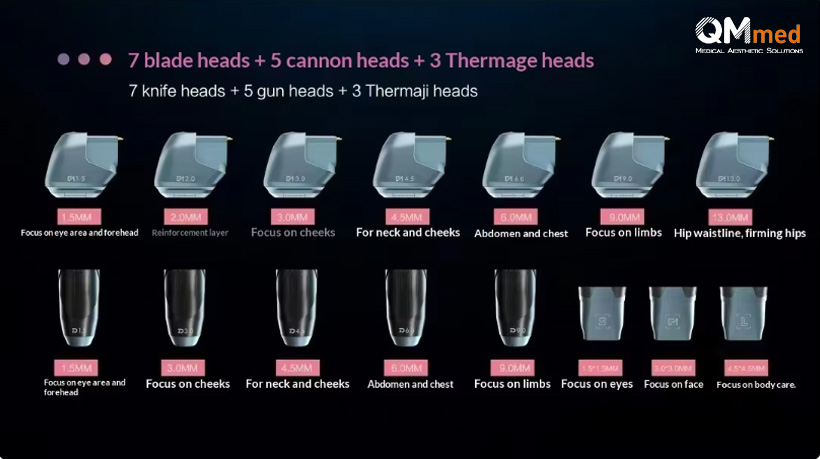

• Ultrasonic Knife (HIFU handle): For precise lifting and tightening of the face, neck, and body. Supports 7 probe depths (1.5mm, 2.0mm, 3.0mm, 4.5mm, 6.0mm, 9.0mm, 13mm).

• Ultrasound Gun: Ergonomic design for body shaping and fat reduction. Supports 5 probe depths (1.5mm, 3.0mm, 4.5mm, 6.0mm, 9.0mm).

• Themage Handle: Multi-polar RF for skin tightening, wrinkle reduction, and pore refinement. Supports 3 probe sizes (1.5×1.5mm, 3.0×3.0mm, 4.5×4.5mm).

2. Multi-Depth, Full-Layer Treatment
From the superficial epidermis (1.5mm) to deep SMAS (4.5mm) and even subcutaneous fat (13mm), the Titanium system allows customized layering based on the client's age, skin condition, and treatment area - including the delicate eye area.

3. Intelligent Touchscreen Interface
The 15.6-inch high-brightness display features an intuitive UI that automatically switches to the corresponding operation interface when a handle is picked up. Real-time parameters (energy, shots remaining, mode, probe type) are clearly shown.

4. Safety & Comfort Features

• Foot pedal control for hands-free operation.

• Probe replacement button with mechanical lock to prevent accidental detachment.

• Automatic energy regulation and real-time impedance monitoring.

• Contact cooling (depending on probe) to protect the epidermis.

5. Minimal Downtime
Clients can return to normal activities immediately. Temporary mild redness or slight swelling resolves within hours to a few days - no bandages, no stitches, no post-op restrictions beyond basic skincare.

6. Long-Lasting, Natural Results
New collagen continues to form over 3-6 months, with results lasting 12-18 months. Maintenance treatments are quick and well-tolerated.

Technical Specifications

Treatment Areas & Probe Selection Guide

Before & After - What to Expect

• Immediately after treatment: Mild redness and warmth (normal, subsides within 2-24 hours). Some clients notice immediate lifting due to tissue coagulation.

• 2-4 weeks: Early collagen remodeling begins; skin feels firmer.

• 3 months: Maximum collagen production; most visible lifting and tightening.

• 6 months+: Results remain stable; annual maintenance recommended.

Contraindications & Safety

Do not use on:

• Pregnant or lactating women

• Clients with pacemakers, metal implants, or electronic devices in the treatment area

• Active skin infections, open wounds, severe acne, or eczema

• History of keloid scarring or autoimmune diseases

• Chemotherapy/radiotherapy patients

• Uncontrolled hypertension or diabetes

Pre-treatment consultation is mandatory. Always perform a patch test on a small area before full treatment.

Maintenance & Warranty

Cleaning: After each use, wipe the handles, probes, and host with a soft, damp cloth and mild detergent. For deep cleaning (weekly), use a cotton swab with a small amount of alcohol to clean interfaces and crevices. Dry thoroughly.

Storage: Keep in a dry, dust-proof cabinet at 5-35°C, humidity 30-70%. Avoid direct sunlight and high humidity.

Warranty:

• Main unit: 1 year from date of purchase

• Handles & probes: 6 months (excluding wear and tear)

• Free repair for non-human caused defects (e.g., boot failure, unstable energy output).

• Damage from dropping, water, unauthorized disassembly, or improper use is not covered but can be repaired for a fee.

Titanium Ultrasonic FAQ

Q1: Is the treatment painful?
Most clients feel only a mild prickling or deep warmth during the HIFU pulses. The Hot Maggie RF handle is completely comfortable - only gentle heating. No topical anesthesia is required for most areas.

Q2: How many sessions are needed?
For facial lifting, 1-2 sessions (spaced 3-4 months apart) provide significant results. For body contouring, 2-3 sessions may be needed. Maintenance once a year is recommended.

Q3: How long do results last?
Results typically last 12-18 months, depending on age, lifestyle, and skin condition. Collagen naturally declines over time, so repeat treatments sustain the effect.

Q4: Can the Titanium system treat the eye area?
Yes - the 1.5mm and 2.0mm probes are specifically designed for the delicate periorbital region (upper eyelids, crow's feet). Always use low energy and follow the strict protocol to ensure safety.

Q5: What is the difference between the Ultrasonic Knife and the Hot Maggie handle?
The Ultrasonic Knife delivers focused, point-by-point HIFU energy for deep lifting (SMAS). The Hot Maggie handle delivers multi-polar RF for volumetric heating of the dermis - it tightens existing collagen and stimulates new collagen without discrete coagulation points. Together, they provide both deep lift and superficial tightening.

Q6: Is there any downtime?
No real downtime. Clients may have slight redness or puffiness for a few hours, but they can wear makeup the next day and resume all normal activities immediately.

Q7: What is the frequency of the device?
The device operates at 2MHz, 4MHz, and 5.5MHz, switchable according to the probe type. Lower frequencies penetrate deeper.

Q8: Can I use the device on all skin types?
Yes, HIFU is color-blind - it works equally well on all Fitzpatrick skin types (I-VI) because it does not rely on melanin absorption. The Hot Maggie RF is also safe for all skin tones.

Why Choose the Titanium Ultrasonic HIFU?

• One machine, three handles - covers lifting, tightening, body contouring, and skin rejuvenation.

• Wide probe selection (15+ probes) - treat everything from eye wrinkles to thigh fat.

• Professional touchscreen interface - easy to learn, simple to operate.

• Safe & proven technology - thousands of clinical treatments worldwide.

• Backed by full warranty and technical support.

For more information, including pricing, training videos, and clinical case studies, please contact our sales team.

Beijing QM Medical Co., Ltd. - Your partner in aesthetic innovation.
