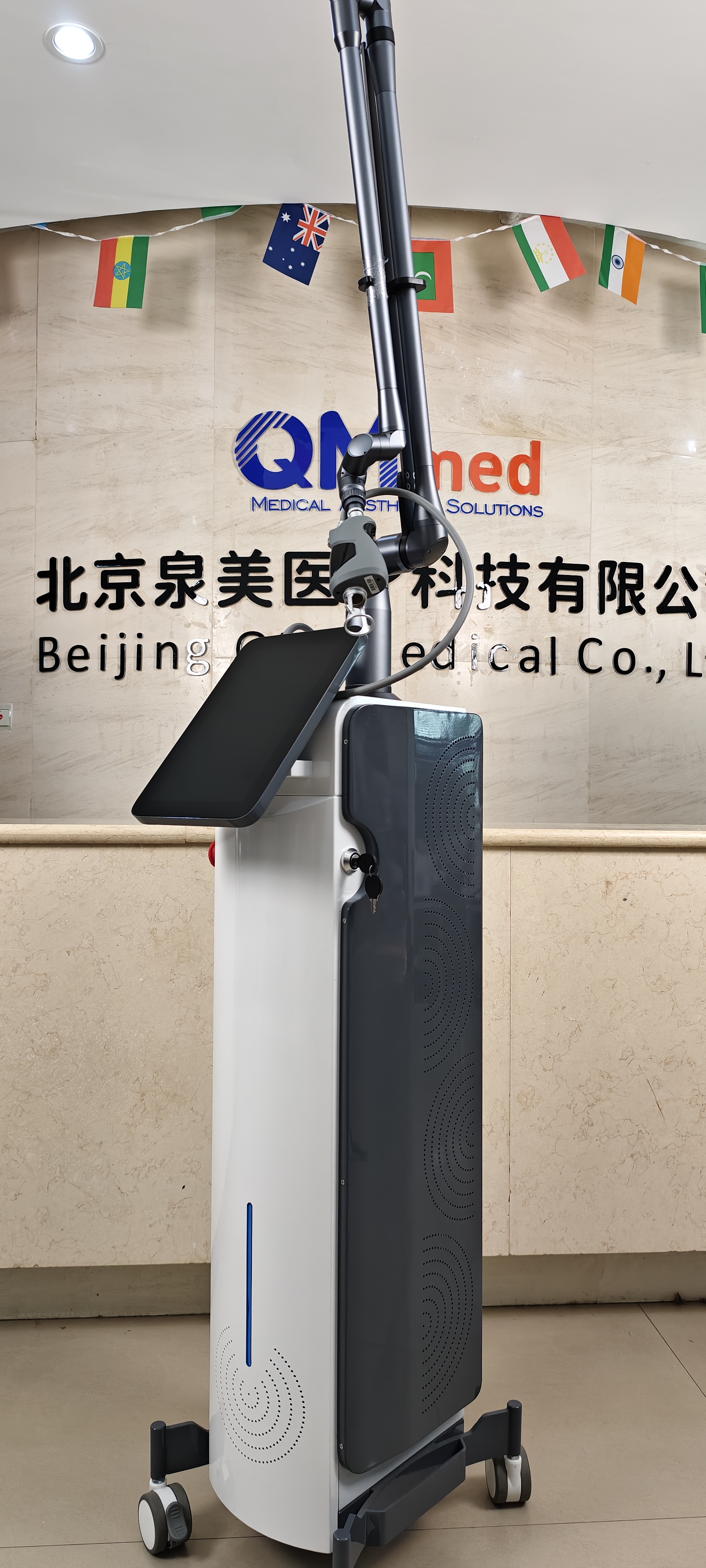

Professional QM-10600C CO₂ Fractional Laser Machine

 Professional QM-10600C fractional CO₂ laser machines are widely used to improve a variety of skin conditions, including wrinkles, fine lines, photodamage, uneven pigmentation, skin laxity, as well as scars, skin tags, and benign superficial lesions. By creating regularly spaced microthermal zones (MTZs) within the epidermis and superficial dermis, they remove damaged tissue while stimulating collagen and elastic-fibre reconstruction, preserving surrounding skin intact for accelerated healing and shortened downtime. Treatment strategies can be flexibly adjusted based on target tissue depth and anticipated downtime.

Professional QM-10600C fractional CO₂ laser machines combine adjustable power output, a precise balance of ablative and thermal effects, and a versatile set of probes and treatment modes to achieve more accurate energy distribution for a wide range of indications, including acne, pigmentation, scar revision, anti-ageing, soft-tissue coagulation, and intimate-care applications. The QM-10600C allows clinicians to precisely control ablation volume and depth, and to manage heat through pulse duration and energy-delivery mode — enhancing treatment effectiveness while minimising unnecessary tissue damage.

How the QM-10600C Works

What is a fractional CO₂ laser machine?

CO₂ laser light has a wavelength of 10,600 nm (far-infrared) and is strongly absorbed by water-rich human tissue (suitable for all skin types). The system converts this energy into heat, causing localised vapourisation (ablation) and thermal coagulation. The QM-10600C uses a sealed American Coherent RF-tube laser source that delivers focused energy via an imported 7-joint articulated arm. This configuration allows high directional accuracy and ensures high energy density at the treatment site.

CO₂ lasers operate in the invisible far-infrared range, requiring a visible aiming beam (5 mW red diode, 635 nm, blink on/off) so the practitioner can see the treatment target. When the laser beam passes through the focusing lens, the heat generated vapourises the target tissue.

Fractional Output Technology

In fractional laser resurfacing, the laser beam is broken into numerous tiny microbeams. These beams are spaced so that, when they strike the skin, the small areas between beams remain untouched and undamaged. The untreated skin acts as a reservoir of intact tissue, promoting faster recovery and reducing the risk of complications. Each microbeam creates a microtreatment zone (MTZ) — sufficient laser energy to stimulate new collagen production and ultimately rejuvenate the skin.

The QM-10600C's specialised articulated-arm vaginal probe, featuring automated 360° rotation, also enables precise intra-vaginal treatment. It delivers controlled thermal energy (50–70 °C) at specific depths within the vaginal mucosa.

The QM-10600C uses a 10,600 nm wavelength, making it ideal for collagen-matrix renewal and the treatment of a wide range of skin conditions. The system ships with five probes for efficient, high-precision fractional and non-fractional treatments.

Application

The QM-10600C CO₂ fractional laser is a versatile platform designed for comprehensive aesthetic and therapeutic applications. It effectively targets:

 ​​​​​​​​​​​​​​Vaginal Mode

• Tightening — improve tightness and muscular tone of the vaginal wall
• Rejuvenation — restore mucosal elasticity and comfort
• Wellness — address post-partum and age-related intimate-health concerns

Surgical Mode

• Blepharoplasty — precise eyelid rejuvenation
• Excision — clean removal of benign lesions
• Lesions & skin tags — controlled ablation of small superficial growths

Fractional Mode

• Scar revision — acne, burn, surgical, traumatic, and stretch marks
• Pigmentation — melasma, freckles, age spots, chloasma
• Skin resurfacing — wrinkles, pores, texture, photo-ageing, tone
• Rejuvenation — collagen remodelling, firming, lifting

Physicians maintain precise control over critical treatment parameters — including ablation depth, thermal exposure, pulse duration, and energy-delivery modes — enabling customised protocols for each indication. This granular adjustability optimises clinical outcomes while preserving surrounding tissue integrity and minimising collateral damage.

Operation Modes

The QM-10600C offers two complementary output concepts that work together for tailored treatments.

4 Treatment Output Modes

• Dot Matrix — uniform grid of microbeams for classic fractional resurfacing

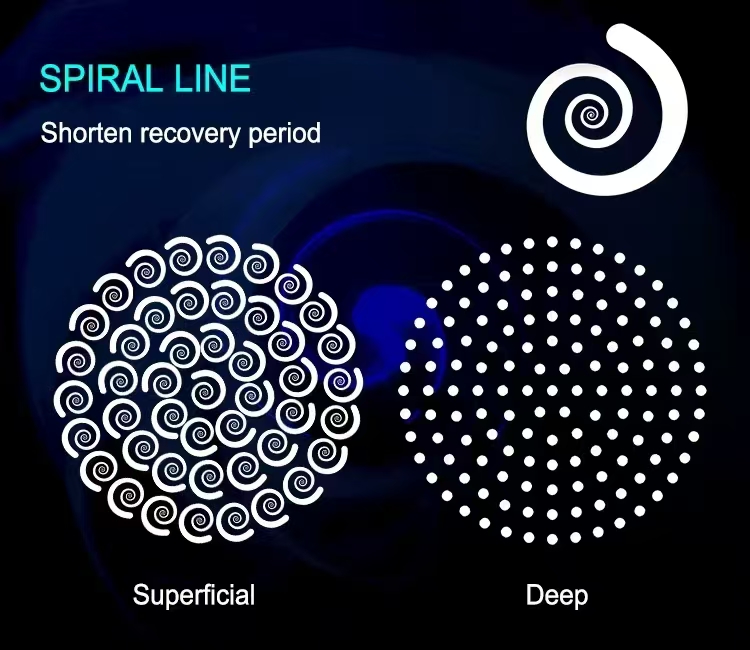

• Spiral — spiral-line pattern that shortens recovery time
• Matrix + Spiral — combines the two for balanced coverage and depth
• Sliding — sliding scan for larger or curved treatment zones

3 Energy Output Modes

• Superficial Mode — shallow, even ablation for surface texture and tone
• Deep Mode — deeper penetration for collagen remodelling and scar revision

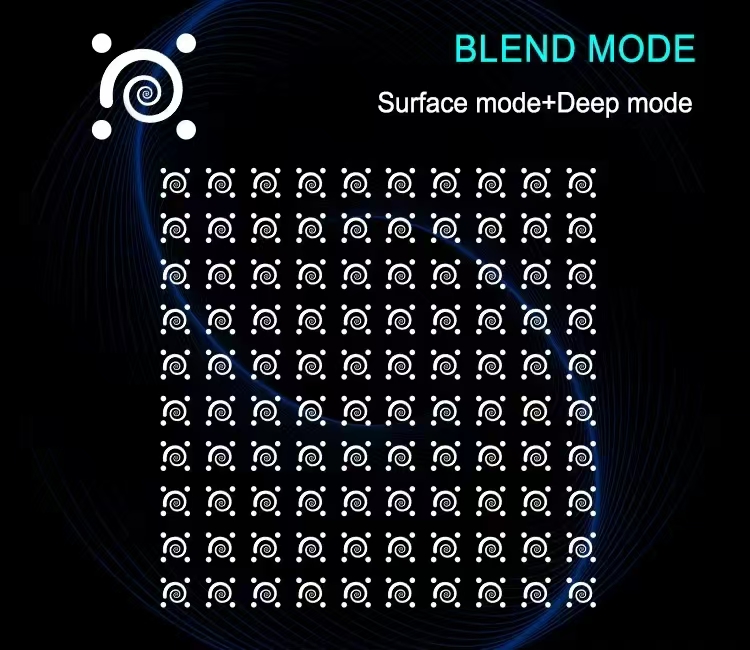

• Blend Mode — combines superficial and deep delivery in a single pass


Variable Treatment Graphics

The system provides 7+1 scan shapes with adjustable sizes and spacing, covering virtually any clinical need:

• Square · Rectangle · Circle · Triangle · Rhombus · Ellipse · Line · DIY Shape

Fractional therapy is ideal for skin resurfacing and rejuvenation, including scar treatment, improving skin tone, elasticity, and texture, and reducing epidermal pigmentation.

Unlike fully ablative laser resurfacing — which removes the entire epidermis — the QM-10600C uses fractional delivery to create pixel-sized perforations in the skin, leaving intact skin tissue as a"bridge"around each perforation. This intact skin provides a source for rapid epithelial regeneration and repair, promoting new collagen production, tissue regeneration, and contracture of existing fibres as wounds heal.

Fractional treatments are highly controllable, reducing the risk of adverse effects such as delayed hypopigmentation, scarring, post-inflammatory hyperpigmentation, infection, and persistent erythema. Patients also enjoy a shorter recovery period and increased comfort.

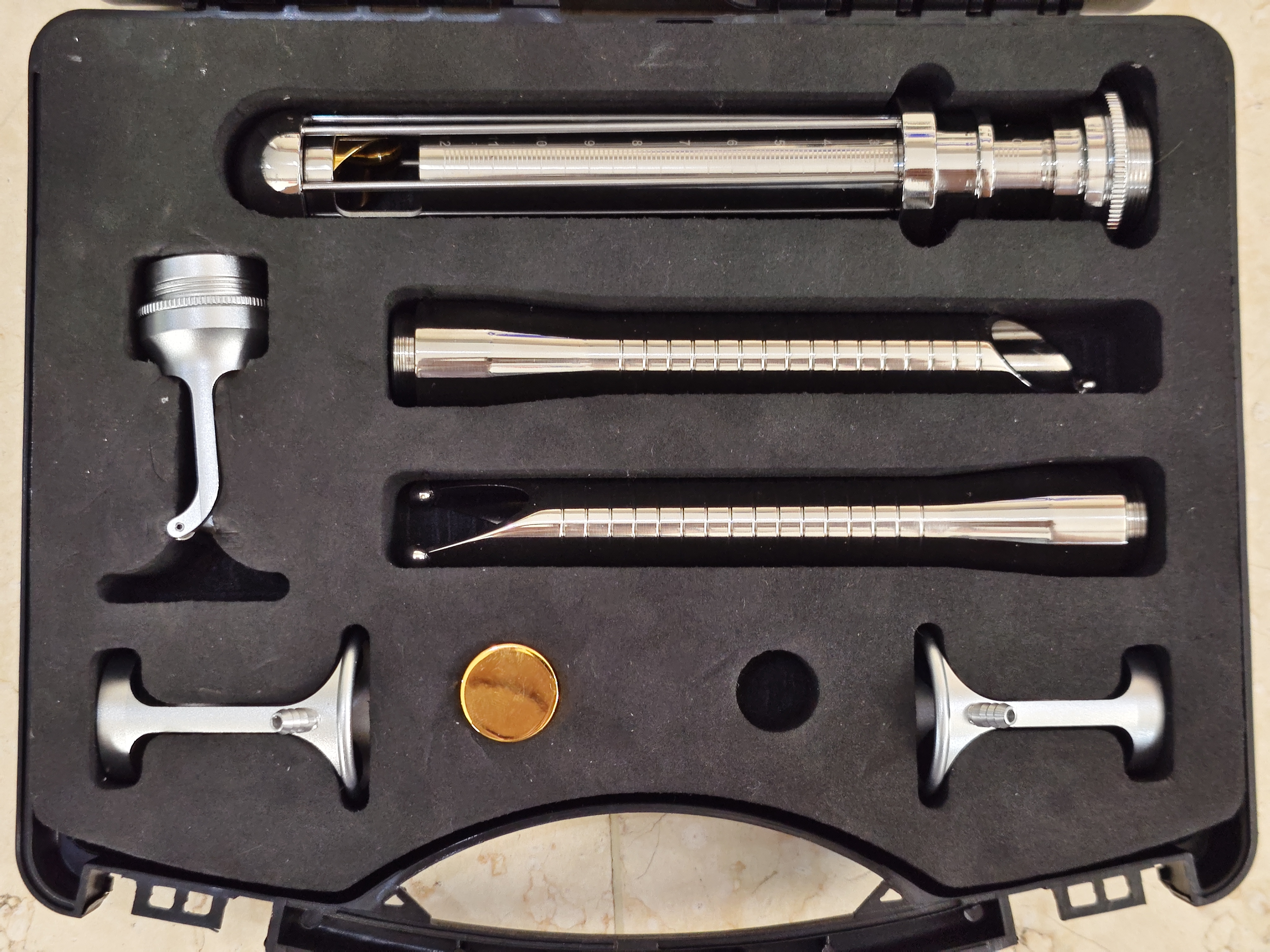

QM-10600C Handpieces

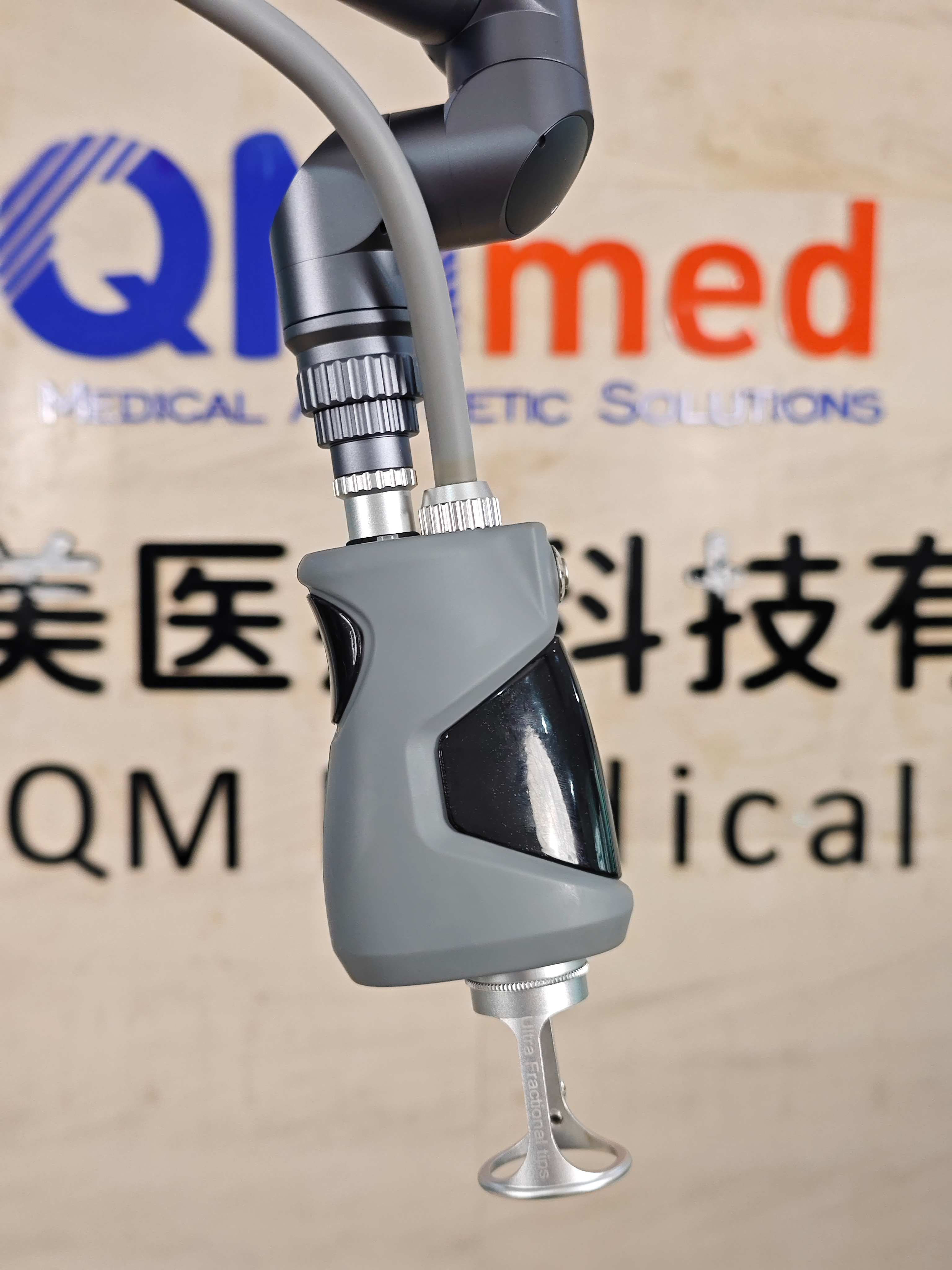

Vaginal Rejuvenation Handpiece

A treatment head specifically designed for non-surgical vaginal tightening and mucosal regeneration. The CO₂ laser vaginal handpiece delivers controlled thermal energy to stimulate collagen remodelling, restore mucosal elasticity, and improve tissue hydration. Its 360° rotational scanning (or linear mode) supports full-circle or targeted treatment, with adjustable depth, dwell time, and energy parameters to accommodate varying degrees of atrophy and patient sensitivity. This handpiece is ideal for addressing mild-to-moderate vaginal laxity, post-menopausal dryness, and stress urinary incontinence — a non-invasive outpatient procedure with minimal discomfort and no downtime.

Fractional Laser Handpiece

A versatile fractional scanner for efficient ablation procedures, including skin-texture and pigmentation reduction. The ergonomically designed QM-10600C fractional head offers effortless operation and carbon-free ablation. It supports a full library of scanning shapes (square, rectangle, triangle, hexagonal, circular, elliptical, and linear) plus a DIY shape, enabling rapid coverage of areas up to 20 × 20 mm — suitable for a variety of dermatological, cosmetic, and surgical applications.

Ultra-Pulse Handpiece

Perfectly controlled cutting and coagulation, ideal for surgical procedures. The Ultra-Pulse handpiece combines cutting and coagulation functions in one device, allowing surgeons to perform both actions simultaneously without switching handles or parameters mid-procedure.

In Cutting (ablation) mode, pulses deliver high peak power for immediate tissue ablation. In Coagulation (thermal coagulation) mode, longer pulses deliver low-to-medium power, generating heat that causes vessel and tissue constriction. This sequential pulse action lets the physician achieve optimal tissue incision or resection while minimising bleeding and reducing patient downtime. A fixed-focus applicator with two spot sizes (0.12 mm and 1.25 mm) enables precise soft-tissue cutting.

High-Efficiency 7-Joint Optical Arm

Imported 7-joint articulated arm with ultra-low photon-loss rate for consistent energy delivery, 360° rotation, and clinic-grade reach and balance.

Advantages of the QM-10600C

• Top-tier American Coherent RF Tube — even energy output, deeper penetration (8–10 mm under the skin), and an 8–12 year service life.
• 3-in-1 System — Fractional, Surgical, and Vaginal treatment modes in a single platform.
• Imported 7-Joint Optical Arm — 360° rotation, ultra-low energy loss, and clinic-grade reach and balance.
• CPG Fractional Probe — Central Pattern Generator for uniform energy and deep, predictable penetration.
• 7+1 Scan Shapes / 3 Energy Output Modes — Square, Rectangle, Circle, Triangle, Rhombus, Ellipse, Line, plus a DIY Shape. Superficial, Deep, and Blend modes cover any indication.
• 12.1"Fold-and-Rotate Touch Screen — true-colour LCD, friendly touch interface, and intuitive clinical workflow.
• Integrated Aiming System — 5 mW red-diode aiming beam (635 nm, blink on/off) for real-time treatment guidance.
• 5 Probes · 3 Systems · 1 Intelligent Platform — covers fractional, surgical, and intimate-care workflows.
• 102,400-Dot Matrix Capacity — large-area treatments in a single pass.
• 12-Hour Continuous Working — engineered for high-volume clinics without thermal throttling.
• Self-Contained Closed-Cycle Cooling — no external chiller required; consistent performance in any climate.
• International Certification — CE · FDA · ISO 13485 certified production.

Before and After

As the skin begins to heal (which takes approximately three weeks), your patient's skin will develop a light pink tint. During this time, you'll begin to see improvements in skin texture and tone. However, the full effects may not be apparent until three to six months after the initial treatment.

Technical Specifications

Probes & Accessories: 5 probes · 3 systems · 1 intelligent platform.

FAQ

▶ What is the difference between ablative and non-ablative fractional lasers?

Ablative fractional lasers generate coherent beams of light that are absorbed by human tissue and converted into energy. These beams are then applied across multiple wavelengths. In the targeted area, the energy heats up, causing tissue ablation (also known as vapourisation). This approach is effective for deeper wrinkles, scars, and severe photodamage, but typically requires a longer recovery period.

Non-ablative fractional lasers are non-invasive laser treatments with a shorter recovery time. They stimulate collagen growth, improving skin tone and texture over time, but multiple treatments are typically required to achieve the same results.

Both ablative and non-ablative fractional lasers target only a small area of skin at a time, leaving untreated tissue, which speeds healing and reduces risks.

▶ What are the advantages of a QM-10600C fractional CO₂ laser machine?

• Precision tissue removal — controlled micro-ablative columns (MTZs) with adjustable depth and spacing.
• Collagen remodelling — long-term collagen and elastin regeneration through thermal stimulation.
• Faster healing — untreated surrounding skin accelerates re-epithelialisation and reduces downtime.
• 3-in-1 versatility — one platform covers Fractional, Surgical, and Vaginal treatments.
• Customisable parameters — adjustable fluence, pulse duration, scan pattern, energy mode (Superficial / Deep / Blend), and scan shape (7+1).
• Proven clinical outcomes — effective for scars, wrinkles, pigmentation irregularities, vaginal rejuvenation, surgical excisions, and overall skin-texture improvement.

▶ Who is a good candidate for QM-10600C treatment?

This treatment is suitable for individuals with:

• Fine lines and wrinkles due to ageing or sun damage
• Acne scars, burn scars, surgical scars, or stretch marks
• Uneven skin tone and texture, including melasma, freckles, age spots, and chloasma
• Enlarged pores or post-partum skin laxity
• Mild-to-moderate skin laxity
• Mild-to-moderate vaginal laxity, post-menopausal dryness, or stress urinary incontinence (Vaginal mode)
• Benign superficial lesions or skin tags (Surgical mode)

Ideal candidates are those with realistic expectations and the ability to follow pre- and post-treatment care. Darker skin types may require adjusted settings to reduce the risk of post-inflammatory hyperpigmentation.

▶ How much does a QM-10600C fractional CO₂ laser cost?

Fractional CO₂ laser prices vary widely, depending on brand, clinical performance, and included features. Some low-end fractional CO₂ lasers can cost as little as $500 or even less, while high-end systems can cost as much as $60,000–$120,000. Well-known CO₂ laser brands, such as Lumenis (AcuPulse™) and DEKA (SmartXide²), maintain the same core technology — fractional CO₂ laser skin resurfacing — across multiple platforms. For some clinics and salons, the price of machines from major brands can be prohibitive.

QM Medical offers a more cost-effective alternative, providing the same essential clinical features — adjustable 1–60 W energy, 7+1 customisable scan patterns, three energy modes (Superficial / Deep / Blend), an American Coherent RF tube, and a 12-hour continuous-work capability — at a more accessible price. Our QM-10600C systems are designed for clinics and distributors worldwide who demand high performance without the added cost.

For a detailed quote, comparison charts, or technical brochures, please contact our sales team directly. We will be happy to recommend the right configuration for your clinic and offer distributor-friendly pricing.
